Foundations of Modern AI Search
Master semantic search fundamentals, vector representations, and the shift from keyword matching to meaning-based retrieval using embeddings.
Why Search Changed: From Keywords to Meaning
You have almost certainly felt this problem before, even if you never had a name for it. You type something into a search bar — a question, a phrase, a half-formed idea — and the results come back technically correct but completely wrong. The words match. The concept doesn't. You refine, rephrase, try again. Somewhere in that system is the answer you need, but the engine can't see past its own literal-mindedness. This lesson exists to explain exactly why that happens, and what it took to build something better. By the end, you'll understand the structural gap between keyword-based retrieval and meaning-based retrieval, and why closing that gap required rethinking what a search index is for. Grab the free flashcards linked alongside this lesson — they'll help you lock in the vocabulary as you go.
The Deceptive Simplicity of Keyword Search
Keyword search feels intuitive because it mirrors how we think about text at a surface level: you want a document about heart attacks, so you search for the words "heart attack." The system finds documents that contain those words. What could be simpler?
The machinery underneath is elegant in its own right. A keyword search engine builds what's called an inverted index — a data structure that maps each unique word in a document corpus to a list of documents containing that word, along with positional metadata. Think of it as the index at the back of a textbook, except instead of page numbers, each entry points to entire documents.
INVERTED INDEX (simplified)
Term → Document IDs
─────────────────────────────
"heart" → [doc_3, doc_7, doc_12]
"attack" → [doc_1, doc_3, doc_7]
"cardiac" → [doc_2, doc_9]
"arrest" → [doc_2, doc_9, doc_14]
"myocardial" → [doc_2]
"infarction" → [doc_2]
When a query arrives, the engine looks up each query term in the index, retrieves the posting lists, computes a relevance score for each candidate document, and returns the top results. This lookup is extraordinarily fast — inverted indexes are one of the great engineering achievements of information retrieval, capable of scanning billions of tokens in milliseconds on commodity hardware.
The scoring step is where algorithms like TF-IDF (Term Frequency–Inverse Document Frequency) and BM25 do their work. TF-IDF rewards documents where a query term appears frequently (high term frequency) and penalizes terms so common across the corpus that they carry little discriminating power (high document frequency reduces the inverse document frequency weight). BM25 refines this with document length normalization and a saturation function that prevents a single term from dominating the score just because it appears a hundred times. These are principled, well-understood algorithms. They work well — within the limits of what they can see.
🎯 Key Principle: Keyword search treats every word as an atomic symbol. "Heart" and "cardiac" are as different to a keyword engine as "heart" and "banana." The engine has no mechanism to know they refer to the same anatomical structure. The characters are different, so the symbols are different, and that's the end of the analysis.
The Vocabulary Mismatch Problem
Here is where the elegant machinery breaks down in practice.
Imagine a medical documentation system containing thousands of clinical notes. A nurse queries the system for patients with "cardiac arrest." The index dutifully retrieves documents containing "cardiac" and "arrest." But a significant portion of the corpus — notes written by different physicians with different stylistic habits, notes translated from other institutions, notes written years apart under different documentation conventions — uses the phrase "heart attack" instead. Not as a different concept. As the exact same concept, described with different words.
Those documents are invisible. The nurse doesn't know they exist. Decisions get made on incomplete information, not because the information is missing from the system, but because the language used to store it didn't match the language used to retrieve it.
💡 Real-World Example: This vocabulary mismatch isn't a corner case — it's the default state of language. The same object gets called a "sofa," a "couch," and a "settee" depending on region. The same software behavior gets described as a "bug," a "defect," a "regression," and an "issue" depending on team culture. A customer asks about "canceling my plan" but the support documentation talks about "subscription termination." A researcher searches for "neural networks" but the seminal papers use "connectionist models." Users and authors independently choose their words, and there is no coordination mechanism forcing them to agree.
This is called the vocabulary mismatch problem, and it was identified as a fundamental challenge in information retrieval research decades before modern machine learning entered the picture. The critical insight is that vocabulary mismatch is not a bug that better query reformulation can fully fix — it is a structural property of natural language. Any system that treats words as its atomic unit of meaning will encounter this gap.
🤔 Did you know? Research in information retrieval consistently found that when two people independently write descriptions of the same document, they share surprisingly few content words. The probability that any given relevant term appears in both descriptions is substantially lower than intuition suggests. This isn't because people are careless — it's because natural language offers many equally valid paths to the same concept.
Why Term Weighting Alone Can't Save You
A reasonable objection at this point: can't we just build a synonym dictionary? Add "cardiac arrest" → "heart attack" as a known equivalence, and expand queries automatically?
Query expansion with curated synonym lists is a real technique, and it helps at the margins. But it runs into three compounding problems:
🔧 Scalability: Natural language contains vast synonym and paraphrase relationships. A handcrafted dictionary will always be incomplete, especially in specialized domains where terminology evolves continuously.
🔧 Ambiguity: Words have context-dependent meanings. "Bank" can mean a financial institution or a riverbank. A synonym expansion that blindly equates "bank" with "financial institution" will corrupt queries about geography. Any rule that works for one context may actively harm retrieval in another.
🔧 Paraphrase beyond synonyms: True conceptual equivalence often involves phrase restructuring, not just word swapping. "The treatment was ineffective" and "the intervention failed to produce outcomes" convey the same clinical judgment but share almost no content words. No synonym dictionary reaches this level of abstraction.
⚠️ Common Mistake: Treating vocabulary mismatch as a solved problem once you've added a synonym list. Synonyms are a subset of semantic equivalence, and a small one. The rest of the space — paraphrase, implication, topic proximity — remains inaccessible to token-level matching.
What Keyword Search Actually Optimizes For
It's worth stepping back and being precise about what inverted index retrieval is designed to do, because the failure modes follow directly from the design goals.
Keyword search optimizes for lexical overlap: the degree to which the tokens in a query appear in a document. BM25 refines how that overlap is scored, but the fundamental signal is still token co-occurrence. The model of relevance baked into these systems is: a document is relevant to a query if it uses the same words as the query.
This is a proxy for relevance, not relevance itself. It works reasonably well when:
- The query is specific and uses the same terminology as the document corpus
- The user knows the precise vocabulary of the domain
- The corpus is small enough that exhaustive manual curation is feasible
It breaks down when:
- Users don't know the domain vocabulary (onboarding, cross-domain search)
- The corpus is multilingual or spans documentation eras with different conventions
- Queries are conceptual rather than terminological ("what causes systems to fail under load" vs. "cascading failure")
- The relevant answer is a paraphrase of the question rather than a literal repetition of its terms
KEYWORD SEARCH: WHAT THE ENGINE SEES
Query: "cardiac arrest"
↓
Tokenize query
["cardiac", "arrest"]
↓
Lookup in inverted index
↓
Score by BM25
↓
Return ranked documents
VISIBLE: docs containing "cardiac" or "arrest"
INVISIBLE: docs containing "heart attack"
docs containing "myocardial infarction"
docs containing "sudden cardiac death"
(all clinically related, all missed)
🧠 Mnemonic: Think of keyword search as a librarian who can only read the index cards, never the books. If the card says "cardiac" and you ask for "heart," you leave empty-handed — even if the book on the shelf is exactly what you needed.
The Shift: Representing Meaning, Not Just Tokens
The question that drives the second era of search is: what would it take to build a system that retrieves by concept rather than by token?
The answer the field converged on is to stop representing documents and queries as bags of words and start representing them as vectors in a continuous, high-dimensional space. This approach is called semantic search or dense retrieval, and it rests on a deceptively simple idea: if two pieces of text mean the same thing, they should be close together in this space, regardless of whether they share any words.
SEMANTIC SPACE (conceptual, 2D projection)
┌─────────────────────────────────────────┐
│ │
│ ● "cardiac arrest" │
│ ● "heart attack" ◄── CLOSE │
│ ● "myocardial infarction" │
│ │
│ │
│ ● "database index" │
│ ● "search engine" │
│ │
└─────────────────────────────────────────┘
Proximity = semantic similarity
NOT proximity = unrelated, regardless of token overlap
In this framework, the notion of "similarity" is defined geometrically rather than lexically. Documents and queries are both mapped to vectors — sequences of numbers — and similarity is computed as the angle between vectors (cosine similarity) or their Euclidean distance. If the mapping is done well, "cardiac arrest" and "heart attack" will produce vectors that are very close together, because a well-trained model has learned that these phrases co-occur in similar contexts, refer to similar entities, and carry similar implications.
💡 Mental Model: Imagine all the words and phrases in a language arranged as points in three-dimensional space (the real space has hundreds or thousands of dimensions, but the intuition transfers). Words and phrases with similar meanings cluster together. "Dog" and "canine" sit near each other. "Happy" and "joyful" sit near each other. "Cardiac arrest" and "heart attack" sit near each other. Retrieval becomes a question of neighborhood: find the documents whose vectors are nearest to the query vector.
This is not just query expansion in disguise. The geometry captures relationships that no hand-crafted rule could enumerate:
- That "the drug was ineffective" and "the medication produced no measurable outcomes" are semantically similar
- That "Python tutorial for beginners" and "getting started with Python" address the same need
- That a question asked in English can retrieve a document written in French, if both are mapped into the same multilingual vector space
🎯 Key Principle: Meaning-based retrieval shifts the unit of comparison from tokens to vectors. The question changes from "does this document contain these words?" to "does this document occupy a region of meaning-space similar to the query?"
Why This Shift Required Machine Learning
Building a mapping from text to meaning-preserving vectors is not something you can do with rules. The relationship between word sequences and semantic content is too complex, too context-dependent, and too vast to specify manually. This is why the practical breakthrough in semantic search was tightly coupled to advances in representation learning — specifically, neural networks trained on large text corpora to learn useful vector representations from data.
These learned representations are called embeddings. The core insight behind embeddings is distributional semantics: words and phrases that appear in similar contexts tend to have similar meanings. By training on billions of words of text and learning to predict context, neural networks develop internal representations that naturally organize semantically similar text close together in vector space.
The implication for retrieval is significant. You no longer need a team of linguists to enumerate synonyms, paraphrases, and conceptual relationships. The model learns them from the statistical structure of language itself — and it generalizes to relationships that no linguist would have thought to encode.
❌ Wrong thinking: "Semantic search is just a smarter version of synonym expansion."
✅ Correct thinking: Semantic search replaces the token-matching paradigm entirely, using learned geometric representations of meaning rather than symbolic rules about words.
The Trade-offs That Come With the Shift
It would be misleading to present this as a clean victory with no costs. The shift toward meaning-based retrieval introduces genuine trade-offs that practitioners need to understand, and subsequent sections of this lesson will address them directly.
📋 Quick Reference Card: Keyword vs. Semantic Retrieval
| 🔑 Keyword (BM25) | 🧠 Semantic (Dense) | |
|---|---|---|
| 📚 Matching unit | Tokens (words) | Vectors (embeddings) |
| 🎯 Strengths | Exact match, rare terms, fast | Synonyms, paraphrase, conceptual |
| ⚠️ Weaknesses | Vocabulary mismatch | Rare terms, hallucinated similarity |
| 🔧 Infrastructure | Inverted index | Vector database |
| 💡 Interpretability | High (matching terms visible) | Lower (similarity is geometric) |
| 🔒 Training required | No | Yes (embedding model) |
BM25 remains highly competitive on queries where the user knows the right terminology. Exact string matching is deterministic and interpretable — you can always audit which terms drove a score. Embeddings introduce a layer of opacity: the model decides what's similar, and that decision reflects whatever patterns appeared in training data, including patterns you didn't intend.
This is why modern production systems frequently use hybrid retrieval — combining dense vector search with traditional keyword search, then fusing the results. You get the vocabulary coverage of semantic search and the precision of exact matching. But that architecture, and how to build it well, is the subject of later lessons. Here, the goal was simply to establish why the shift happened: because the alternative — a system permanently blind to vocabulary mismatch — was leaving too much information unreachable.
💡 Pro Tip: When evaluating a retrieval system, always test with queries that use different vocabulary than the documents. A system that scores well only on queries that echo document terminology is telling you it's doing lexical matching, not semantic understanding — even if it's marketed as an AI search tool.
Setting Up What Comes Next
This section traced the arc from a clean, efficient, but fundamentally limited architecture — the inverted index with BM25 scoring — to the need for something that can represent meaning rather than just tokens. The concrete failure was vocabulary mismatch: users and authors choose different words for the same concept, and any system that treats words as atomic symbols will never bridge that gap through better scoring alone.
The answer is to represent text as embeddings: vectors in a continuous space where geometry encodes semantic similarity. But this raises the obvious next question: how does text actually become a vector? What does an embedding model do, and what makes the resulting numbers geometrically meaningful? That is precisely what the next section addresses — giving you the concrete mental model you need before the abstractions of vector databases and retrieval pipelines can make real sense.
🧠 Mnemonic to carry forward: Keyword search asks "do the words match?" Semantic search asks "do the meanings align?" The whole infrastructure difference between the two systems — different indexes, different scoring, different hardware requirements — follows from that one changed question.
How Text Becomes a Vector: Embeddings Explained
Before you can build a system that retrieves documents by meaning rather than keywords, you need to understand how meaning gets turned into something a computer can compare mathematically. That transformation — from a string of human language into a list of numbers — is the foundational operation of modern semantic search. This section gives you a precise mental model of what an embedding is, how it is produced, and why its geometric properties make it so useful for retrieval.
What Is an Embedding?
An embedding is a fixed-length list of floating-point numbers that represents a piece of text. You might have a list of 384 numbers, or 768, or 1536 — the count is determined by the model architecture and is called the embedding dimension. Each position in that list corresponds to some learned feature of language, and the combination of all values together encodes the meaning of the input.
The critical insight is not what any single number means — individual dimensions rarely have clean human-readable interpretations. The insight is what the collection of numbers represents: a position in a high-dimensional space. Two pieces of text with similar meanings will land near each other in that space. Two pieces of text with unrelated meanings will land far apart.
💡 Mental Model: Imagine a city map. Streets, restaurants, parks, and apartments all occupy specific coordinates. Things that tend to appear together — coffee shops and bookstores, say — cluster in certain neighborhoods. Embeddings work similarly, except instead of a two-dimensional map, the space has hundreds or thousands of dimensions, and the "neighborhoods" are defined by semantic similarity rather than geography.
Here is a simplified illustration of what this looks like with a tiny three-dimensional space (real embeddings have hundreds of dimensions, but the geometry is identical):
"puppy"
|
"dog" -------+------- "kitten"
\ /
\ /
"cat"------/
(far away in a different region)
"mortgage" ---- "interest rate"
|
"savings bank"
Words and phrases about animals cluster together; words about finance cluster together. The distance between those two clusters is large. The distance between "dog" and "puppy" is small. This geometry is not hand-coded — it emerges from training on large text corpora.
🎯 Key Principle: The value of an embedding comes entirely from the relative distances between vectors. An embedding viewed in isolation is meaningless; an embedding compared to thousands of others is a retrieval engine.
How Encoder Models Produce Embeddings
Embeddings are not computed by a simple lookup table or a bag-of-words count. They are produced by encoder models — neural networks, almost universally transformer-based, that read all the tokens in a sequence simultaneously and produce context-aware representations.
The transformer architecture is important here because it uses a mechanism called self-attention: each token in the input attends to every other token, so the representation of any single word is influenced by everything around it. This is what allows the same word to produce different embeddings depending on context.
Consider the word bank:
- In "I deposited money at the bank", the surrounding tokens — deposited, money — pull the embedding toward the finance cluster.
- In "We fished at the river bank", the surrounding tokens — fished, river — pull the embedding toward the geography/nature cluster.
Input: "I deposited money at the bank"
| | | |
tokens pass through transformer layers
| | | |
v v v v
[context-aware token representations]
|
pooling operation
|
[single embedding vector]
[0.23, -0.87, 0.41, ... ]
(768 dimensions)
Input: "We fished at the river bank"
different context ->
[0.71, 0.12, -0.55, ... ]
(same 768 dimensions,
different coordinates)
After the transformer processes all tokens, the model applies a pooling operation to collapse the per-token representations into a single fixed-length vector. The most common approaches are:
- 🧠 Mean pooling: average the representations of all tokens. Produces a stable, general-purpose embedding that reflects the entire input.
- 🧠 CLS token pooling: use only the representation of a special [CLS] (classification) token prepended to the input. Some architectures train this token to aggregate sequence-level meaning.
- 🧠 Max pooling: take the maximum value across all tokens for each dimension. Less common for general retrieval but occasionally useful for domain-specific tasks.
💡 Real-World Example: Models in the Sentence-Transformers family — widely used for semantic search tasks — default to mean pooling. When you encode the sentence "The contract expires next quarter," the model averages the contextualized representations of all eight tokens into one 384- or 768-dimensional vector. That vector is what gets stored in your vector database.
⚠️ Common Mistake — Mistake 1: Assuming that embedding a single word and embedding a full sentence produce comparable results. A word embedding is dominated by that word's general meaning. A sentence embedding encodes relational meaning — the interaction between subject, verb, and object. Always embed at the unit of meaning you intend to retrieve.
Measuring Similarity: Cosine Distance and Dot Product
Once you have two vectors, you need a way to measure how close they are. The standard choice for semantic search is cosine similarity.
Cosine similarity measures the angle between two vectors rather than the distance between their endpoints. This is a crucial distinction. Two vectors can point in exactly the same direction — meaning their angle is zero — but have very different magnitudes. Cosine similarity ignores magnitude and focuses entirely on orientation. The formula is:
cosine_similarity(A, B) = (A · B) / (||A|| × ||B||)
where:
A · B = dot product (sum of element-wise products)
||A|| = magnitude of vector A (Euclidean norm)
||B|| = magnitude of vector B
Result ranges from -1 (opposite directions)
to 0 (perpendicular, unrelated)
to +1 (same direction, identical meaning)
Why angle instead of distance? Because the magnitude of an embedding can vary based on input length and vocabulary distribution in ways that don't reflect semantic content. Two paraphrases of the same idea should score near 1.0 regardless of how long or short they are. Cosine similarity makes that happen.
Dot product is a computationally cheaper approximation. When vectors are normalized — scaled so their magnitude is exactly 1.0 — the dot product and cosine similarity produce identical results, because the ||A|| × ||B|| denominator becomes 1 × 1 = 1. Many vector databases and approximate nearest-neighbor libraries offer a normalized dot product option precisely for this reason: it skips the magnitude computation and reduces search latency at scale.
🎯 Key Principle: Normalize your embeddings before storage if your retrieval system uses dot product as its metric. Skipping normalization when the system assumes normalized vectors is a silent correctness bug — similarity scores will be wrong, and the failure won't surface as an error message.
🤔 Did you know? The choice of similarity metric affects not just speed but ranking behavior. Euclidean distance (straight-line distance between vector endpoints) penalizes vectors that are oriented similarly but have different magnitudes. In practice, cosine similarity tends to outperform Euclidean distance for text retrieval tasks precisely because text length variation inflates magnitude without changing semantic orientation.
Embedding Quality and Domain Specificity
Not all embedding models are equally good — and crucially, not all embedding models are equally good for your use case. The quality of an embedding depends heavily on two factors: the training corpus and the training objective.
A model trained predominantly on general web text will have learned to cluster concepts the way general web content uses them. Search for "MI" in a general-purpose model and it might cluster near "Michigan" or "Mission Impossible." Search for "MI" in a model trained on clinical notes and it will cluster near "myocardial infarction." The underlying mathematics are identical; the coordinate system has been tuned to a different domain.
General-purpose model:
"cardiac arrest" -------- "heart failure"
| |
(moderate proximity) "MI" -------- "Michigan"
| |
"emergency medicine" "Detroit"
Biomedical-tuned model:
"cardiac arrest" --- "MI" --- "myocardial infarction"
| | |
"STEMI" "troponin" "ACS"
("Michigan" is distant from "MI" in this space)
This is not a flaw in general-purpose models — they are doing exactly what they were trained to do. The implication for practitioners is that task-specific evaluation always beats benchmark scores from a different domain. A model that ranks first on a general semantic textual similarity benchmark may perform worse on your legal contract corpus than a smaller model fine-tuned on legal text.
💡 Pro Tip: Before committing to an embedding model for production, create a small evaluation set of 50–100 query/relevant-document pairs from your actual domain. Run your candidate models against that set and measure recall. This catches domain mismatch early and costs far less than refactoring after you've built the rest of the pipeline.
⚠️ Common Mistake — Mistake 2: Treating embedding model selection as a one-time decision made by checking a public leaderboard. Leaderboards measure performance on held-out datasets that may share little with your content. Re-evaluate periodically, especially when your document corpus changes significantly.
Embedding quality is also affected by maximum token length. Most encoder models have a hard context window — inputs longer than this limit get truncated silently. If a model has a 512-token window and you feed it an 800-token document, the last 288 tokens are simply dropped. The embedding reflects an incomplete input. Always verify your model's maximum sequence length against your actual document lengths before deployment.
Chunking Strategy: The Overlooked Variable
Even with a high-quality embedding model, retrieval can fail if you split your documents incorrectly before embedding. This step — chunking — determines what units of text get turned into vectors, and it has a direct, measurable impact on retrieval precision.
The core tension is straightforward:

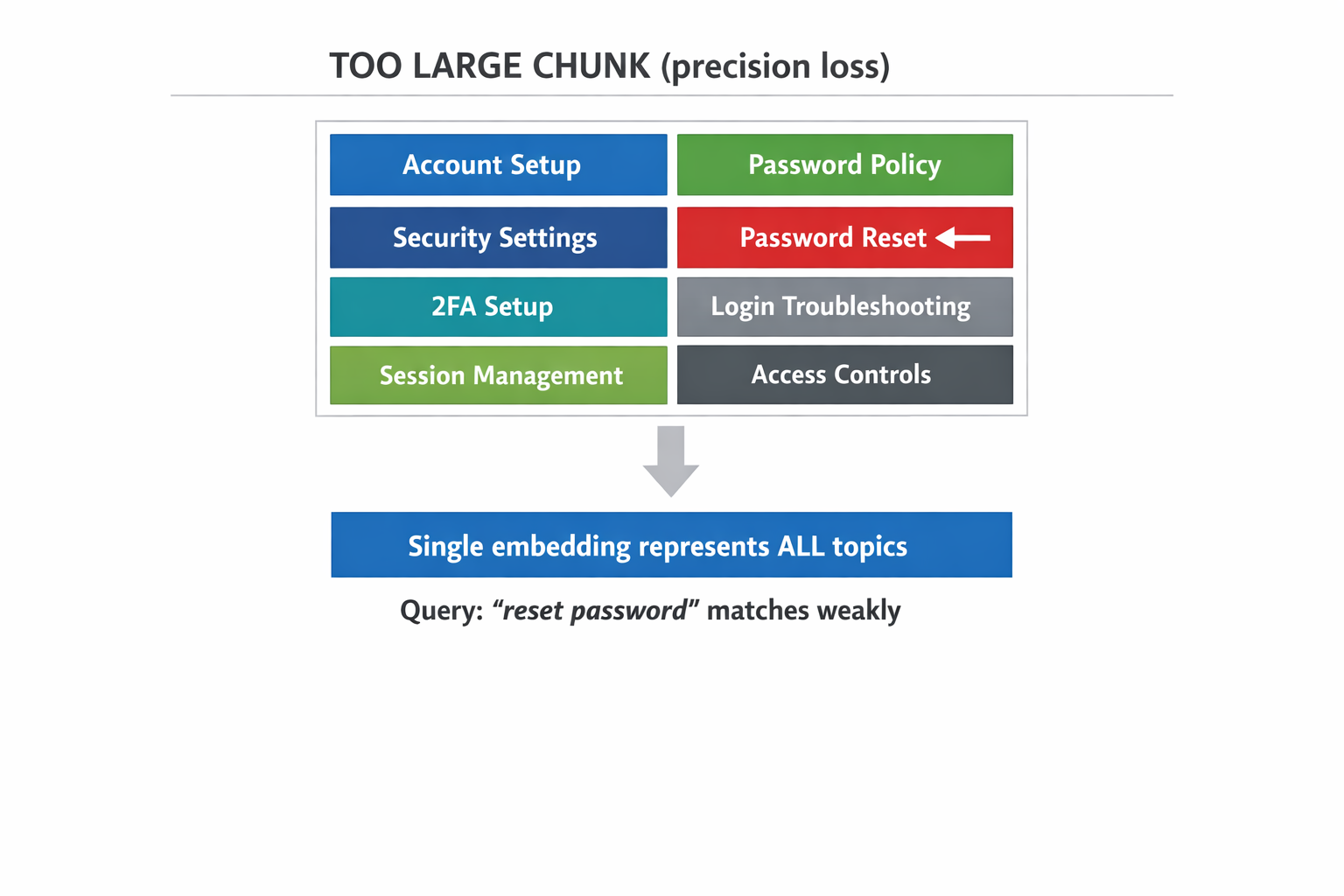

Chunk too large:
┌──────────────────────────────────────────────────┐
│ Chapter 3: Database Optimization │
│ [2000 tokens of mixed content covering indexing, │
│ query planning, replication, and backups] │
└──────────────────────────────────────────────────┘
Query: "How do I configure read replicas?"
Problem: The embedding averages ALL the topics.
"read replicas" gets diluted by indexing,
query planning, and backup content.
Similarity score to the query drops.
Chunk too small:
┌──────────────────────┐
│ "Set max_connections │
│ to 100." │
│ [12 tokens] │
└──────────────────────┘
Query: "How do I configure read replicas?"
Problem: The chunk is accurate but contains no
surrounding context. Retrieved in isolation,
it's ambiguous — max_connections for what?
The LLM can't use it to generate a good answer.
The right chunking strategy depends on your document type, your query patterns, and your downstream use of the retrieved content. A few practical approaches:
- 📚 Fixed-size chunking with overlap: Split every N tokens, with a sliding window overlap of M tokens (e.g., 512 tokens, 50-token overlap). Simple and consistent. The overlap ensures sentences split across chunk boundaries still appear whole in at least one chunk.
- 📚 Semantic chunking: Split on paragraph breaks, section headers, or natural topic boundaries rather than token counts. Preserves logical units but produces variable-length chunks that may require size limits as a safety cap.
- 📚 Hierarchical chunking: Store both a coarse embedding (entire section) and fine-grained embeddings (individual paragraphs). Use the coarse level to identify candidate sections, then use the fine-grained level to pinpoint the exact passage. More complex to implement but improves both recall and precision.
- 📚 Document-level embedding for routing: Embed the entire document as a summary-level vector, and use it only to decide which documents are candidates. Then retrieve at the chunk level within those candidates. Useful when documents are long and queries are highly specific.
🧠 Mnemonic: Think of chunking as choosing the right unit of answer. Ask: "If this chunk were the only thing retrieved, would it contain enough context to answer a plausible query?" If yes, the chunk is appropriately sized. If no, it's either too small (missing context) or too large (likely to be retrieved for the wrong query).
⚠️ Common Mistake — Mistake 3: Using the same chunk size for all document types. A 512-token chunk works reasonably well for dense technical documentation but may span an entire FAQ entry (which should be one chunk) or only a quarter of a legal clause (which should be one chunk). Match chunk boundaries to the semantic units your domain naturally produces.
Putting the Pieces Together
To consolidate this section's concepts, trace the journey of a single sentence from raw text to a usable retrieval artifact:
Input text:
"The quarterly earnings report exceeded analyst expectations."
|
v
Tokenization:
["The", "quarterly", "earnings", "report",
"exceeded", "analyst", "expectations", "."]
|
v
Transformer encoder:
Each token attends to all others.
"earnings" representation influenced by
"quarterly", "report", "analyst" -> finance context
|
v
Mean pooling:
Average all token representations
|
v
Output vector: [0.14, -0.67, 0.33, ..., 0.91]
|_________________________________|
768 dimensions
|
v
Normalization (optional but recommended):
Scale so ||vector|| = 1.0
|
v
Store in vector database alongside
document metadata and source reference
At query time, the exact same process runs on the user's query text. The resulting query vector is compared — via cosine similarity or normalized dot product — against every stored document vector (or an approximation thereof, using index structures covered in later lessons). The documents with the highest similarity scores are returned as candidates.

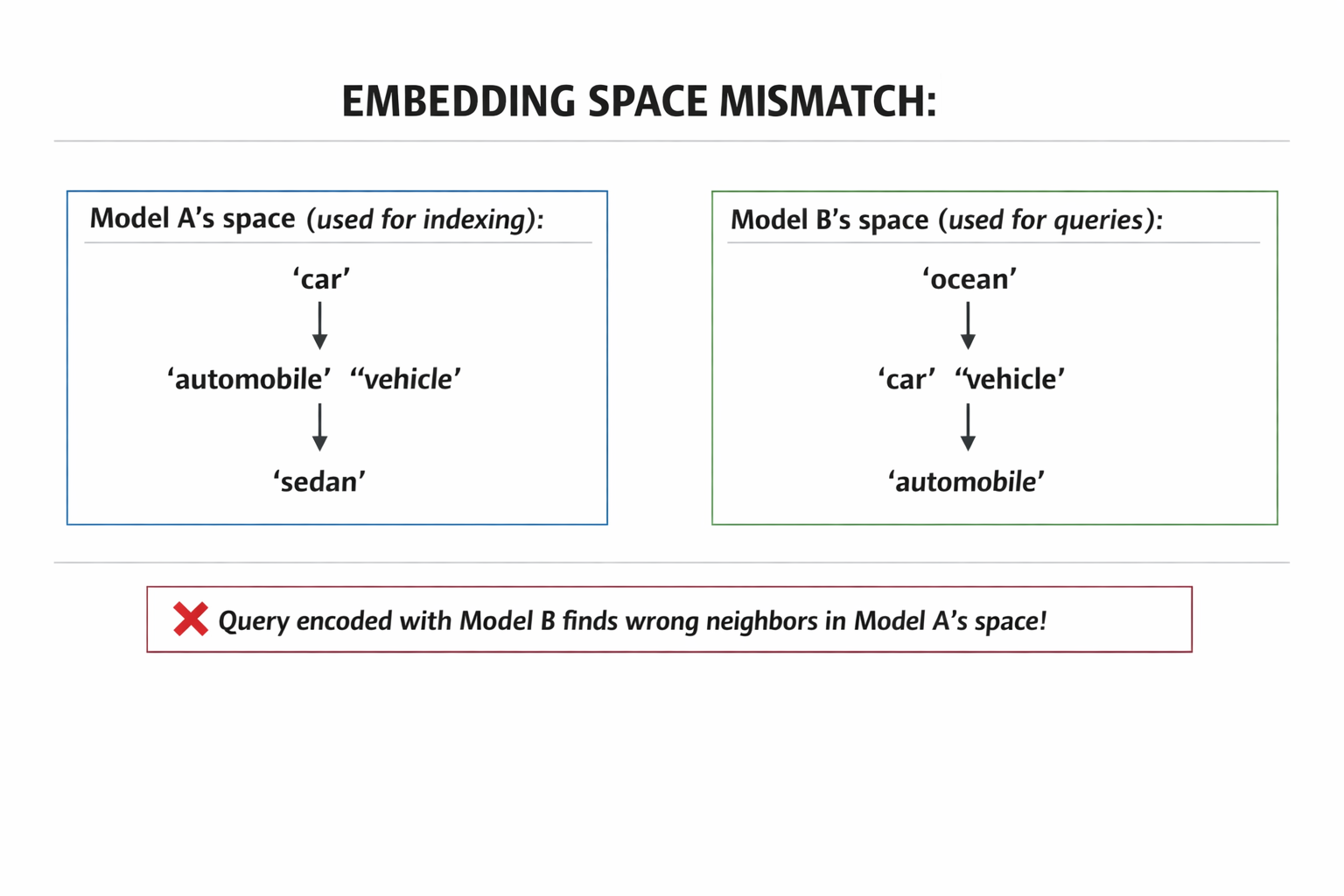

💡 Remember: The embedding model used at query time must be the same model used at indexing time. Different models produce vectors in different coordinate systems. Comparing a vector from Model A against a vector from Model B produces a similarity score that is mathematically valid but semantically meaningless — the numbers have no shared frame of reference.
❌ Wrong thinking: "I can swap in a newer, better embedding model without re-indexing my documents — I'll just embed new queries with the new model."
✅ Correct thinking: "Changing the embedding model requires re-embedding every document in the index. The query vector and all document vectors must live in the same coordinate space."
📋 Quick Reference Card:
| 🔧 Concept | 📚 Definition | 🎯 Why It Matters |
|---|---|---|
| 🔧 Embedding | Fixed-length float vector representing text meaning | Enables mathematical comparison of semantic content |
| 🔧 Embedding dimension | Number of values in the vector | Larger = more expressive but slower and heavier |
| 🧠 Encoder model | Transformer that produces context-aware embeddings | Captures polysemy — same word, different contexts |
| 🎯 Cosine similarity | Angle-based similarity metric, range -1 to +1 | Ignores length variation; focuses on semantic direction |
| 🔒 Normalization | Scaling vector to unit length | Allows dot product to substitute for cosine similarity |
| 📚 Training corpus | Text data the model learned from | Determines which domain concepts cluster tightly |
| 🔧 Chunking | Splitting documents before embedding | Controls retrieval granularity and context preservation |
With this mental model in place — text becomes a position in space, similar meanings land nearby, similarity is an angle, and both model choice and chunking strategy shape what "nearby" means in practice — you are ready to see how these vectors move through a complete retrieval pipeline. That is exactly where the next section picks up.
The Retrieval Pipeline: From Query to Ranked Results
Before diving into the individual components of semantic search — vector databases, embedding models, re-rankers — it pays to see the whole machine running first. This section walks you through a complete retrieval pipeline from the moment a user presses Enter to the moment a ranked list of results (or a grounded language model response) appears on screen. Each stage you encounter here will be studied in depth later; right now, the goal is to build a mental map so that every subsequent detail has somewhere to land.
The Shape of the Pipeline

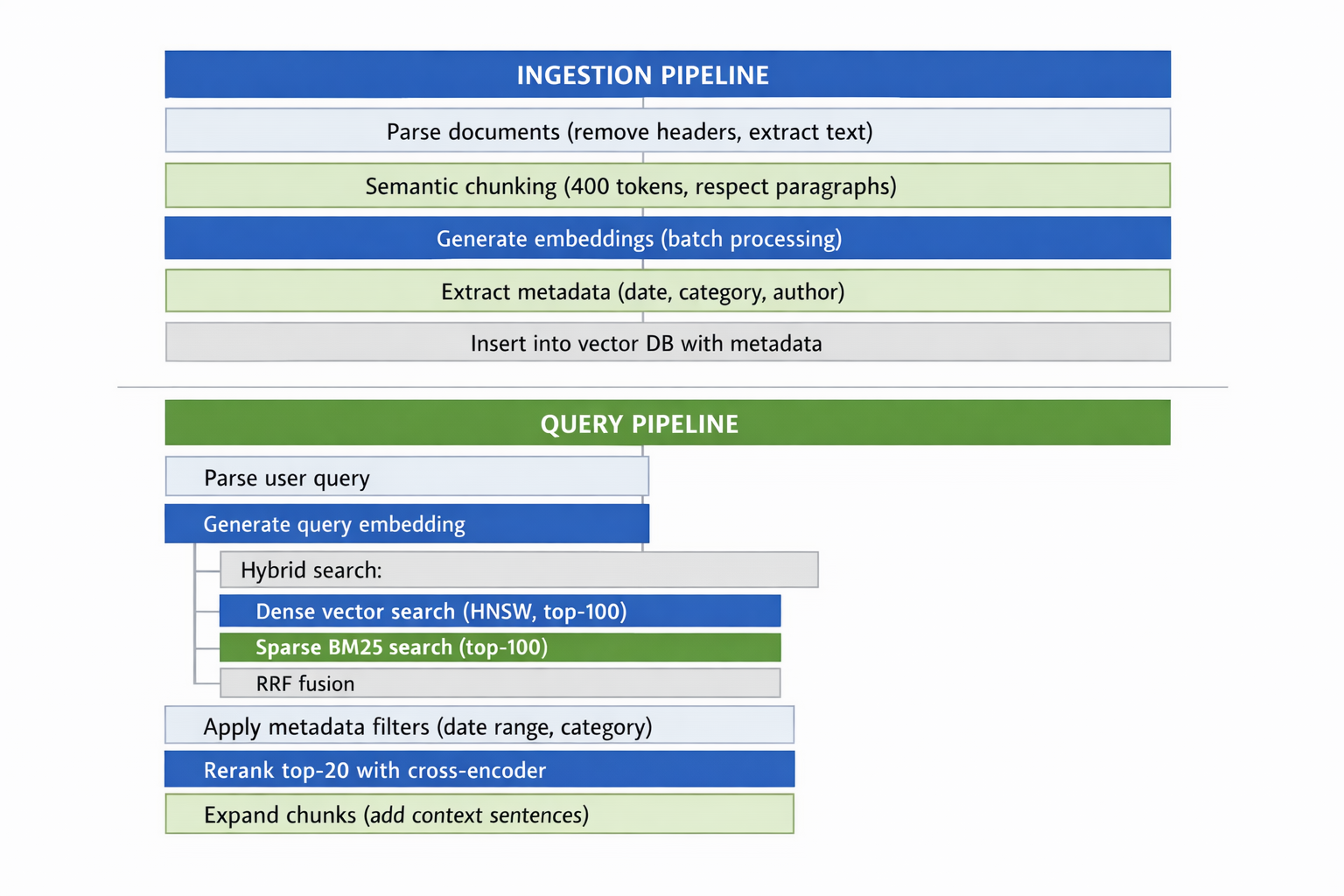

A modern semantic search pipeline is not a single step — it is a sequence of transformations, each trading off speed, accuracy, and compute in a deliberate way. The high-level flow looks like this:
┌─────────────────────────────────────────────────────────────────┐
│ INDEXING TIME (offline) │
│ │
│ Raw Documents → Chunking → Embedding Model → Document Vectors │
│ │ │
│ ▼ │
│ ANN Index │
│ (stored on disk) │
└─────────────────────────────────────────────────────────────────┘
┌─────────────────────────────────────────────────────────────────┐
│ QUERY TIME (online) │
│ │
│ User Query → Embedding Model → Query Vector │
│ │ │
│ ▼ │
│ ANN Search │
│ (top-100 candidates) │
│ │ │
│ ▼ │
│ Re-Ranker Model │
│ (top-k final results) │
│ │ │
│ ▼ │
│ ┌────────────────────────┐ │
│ │ Retrieval complete │ │
│ │ (passages surfaced) │ │
│ └────────────┬───────────┘ │
│ │ (optional) │
│ ▼ │
│ Language Model Generation │
│ (reads passages, produces response) │
└─────────────────────────────────────────────────────────────────┘
Two time horizons live inside this diagram: indexing time (offline, done once per corpus update) and query time (online, done for every user request). The distinction matters because the cost profile is completely different. You can afford to spend seconds — even minutes — embedding and indexing a large corpus. You cannot afford that at query time, where a user is waiting.
Stage 1: Query Embedding — Mapping the Question into Vector Space
When a user submits a query, the first thing the pipeline does is convert it into a vector using the same embedding model that was used to embed the documents at indexing time. This constraint — same model, same space — is not a suggestion. It is the foundational requirement that makes semantic similarity meaningful.
To understand why, recall what an embedding model actually does: it maps text to a point in a high-dimensional space where proximity encodes semantic relatedness. If you embedded your documents with Model A and then embed your query with Model B, the two sets of vectors inhabit different geometric spaces. Comparing them with cosine similarity is like measuring the distance between a city in kilometers and a city in miles without converting units — the numbers are internally consistent but mutually meaningless.
💡 Real-World Example: Suppose your documentation corpus was indexed using a 768-dimensional embedding model trained on technical text. A user asks: "How do I reset my API credentials?" That query goes through the identical model and emerges as a 768-dimensional vector. The vector is numerically close — in that 768-dimensional space — to document chunks that discuss API key rotation, credential management, and authentication tokens, even though none of those chunks contain the exact phrase "reset my API credentials."
The query embedding step is fast — typically a few milliseconds on modern hardware — because a single short query is trivially cheap to encode relative to the corpus. The latency cost appears in the next stage.
🎯 Key Principle: The embedding model is the contract between indexing and retrieval. Changing the model means re-indexing the entire corpus. Version your embedding models the same way you version APIs.
Stage 2: Approximate Nearest Neighbor Search — Speed Over Perfection
With a query vector in hand, the pipeline needs to find the document vectors that are most similar to it. The naive approach — compute the distance between the query vector and every document vector in the index — is called exact nearest neighbor search or brute-force search. It always finds the true closest neighbors. It also scales as O(n·d), where n is the number of documents and d is the vector dimension. At millions or billions of documents, this is catastrophically slow for interactive use.
This is where Approximate Nearest Neighbor (ANN) algorithms enter. ANN algorithms structure the index in advance so that at query time, the search can skip the vast majority of document vectors and still recover a high fraction of the true nearest neighbors. The trade-off is explicit: you sacrifice a small, controlled amount of recall (you might miss a few true neighbors) in exchange for search times that are orders of magnitude faster.
Two ANN algorithms dominate production deployments:
HNSW: Hierarchical Navigable Small World
HNSW builds a layered graph over the vector space. At the top layer, there are a few long-range connections; at the bottom layer, there are many short-range connections. A query starts at the top, navigates toward promising regions via long-range hops, then drills down through finer layers to identify the closest candidates. It resembles the way a traveler might navigate: fly between continents, then take regional trains, then walk the last block.
HNSW offers excellent recall-speed trade-offs and is query-time efficient, but it is memory-intensive because the graph must live in RAM. Building the index is also slower than some alternatives.
IVF: Inverted File Index
IVF (Inverted File Index in the vector context, distinct from the keyword inverted index) works differently. During indexing, the vector space is partitioned into clusters using a method like k-means. Each document vector is assigned to its nearest cluster centroid. At query time, the search examines only the vectors in the closest nprobe clusters rather than all clusters. Increasing nprobe raises recall at the cost of speed.
IVF is generally more memory-efficient than HNSW and can be combined with quantization techniques (e.g., Product Quantization, or PQ) to compress vectors and fit enormous corpora into manageable memory footprints — at a further, tunable recall cost.
HNSW vs. IVF at a Glance
─────────────────────────────────────────────────────
Property HNSW IVF
─────────────────────────────────────────────────────
Recall@10 Very high High (tunable)
Query latency Very fast (in-memory) Fast (tunable)
Build time Slow Faster
Memory usage High (graph in RAM) Lower (+ PQ option)
Scalability Hundreds of millions Billions (with PQ)
─────────────────────────────────────────────────────
⚠️ Common Mistake: Treating ANN recall as a fixed property. Both HNSW and IVF have tunable parameters — ef_search in HNSW, nprobe in IVF — that shift the speed/recall trade-off at query time. A common production error is benchmarking at high recall settings during development, then deploying at default (lower recall) settings to meet latency SLAs, without realizing the accuracy regression.
🤔 Did you know? The "small world" in HNSW is a reference to the social network concept: most nodes are not directly connected to each other, but any node can reach any other node through a small number of hops. The same structural property that makes human social networks efficient for information spread makes HNSW efficient for navigating high-dimensional vector spaces.
Stage 3: Re-Ranking — A Second, Slower, More Accurate Look
ANN search returns a candidate set — typically the top 50 to 200 documents by approximate vector similarity. This candidate set is retrieved quickly, but approximate similarity has a known limitation: it ranks by vector distance in embedding space, which is a proxy for relevance, not relevance itself. Two documents can be geometrically close to a query vector while differing significantly in how precisely they answer the actual question.
Re-ranking is the second-pass step that addresses this. A re-ranker model takes the original query and each candidate document and produces a more accurate relevance score — typically using a cross-encoder architecture, where query and document are fed jointly into the model rather than embedded independently. Cross-encoders are slower because they cannot pre-compute document representations, but they capture fine-grained query-document interaction that bi-encoders (which produce independent vectors) miss.
The pipeline logic is:

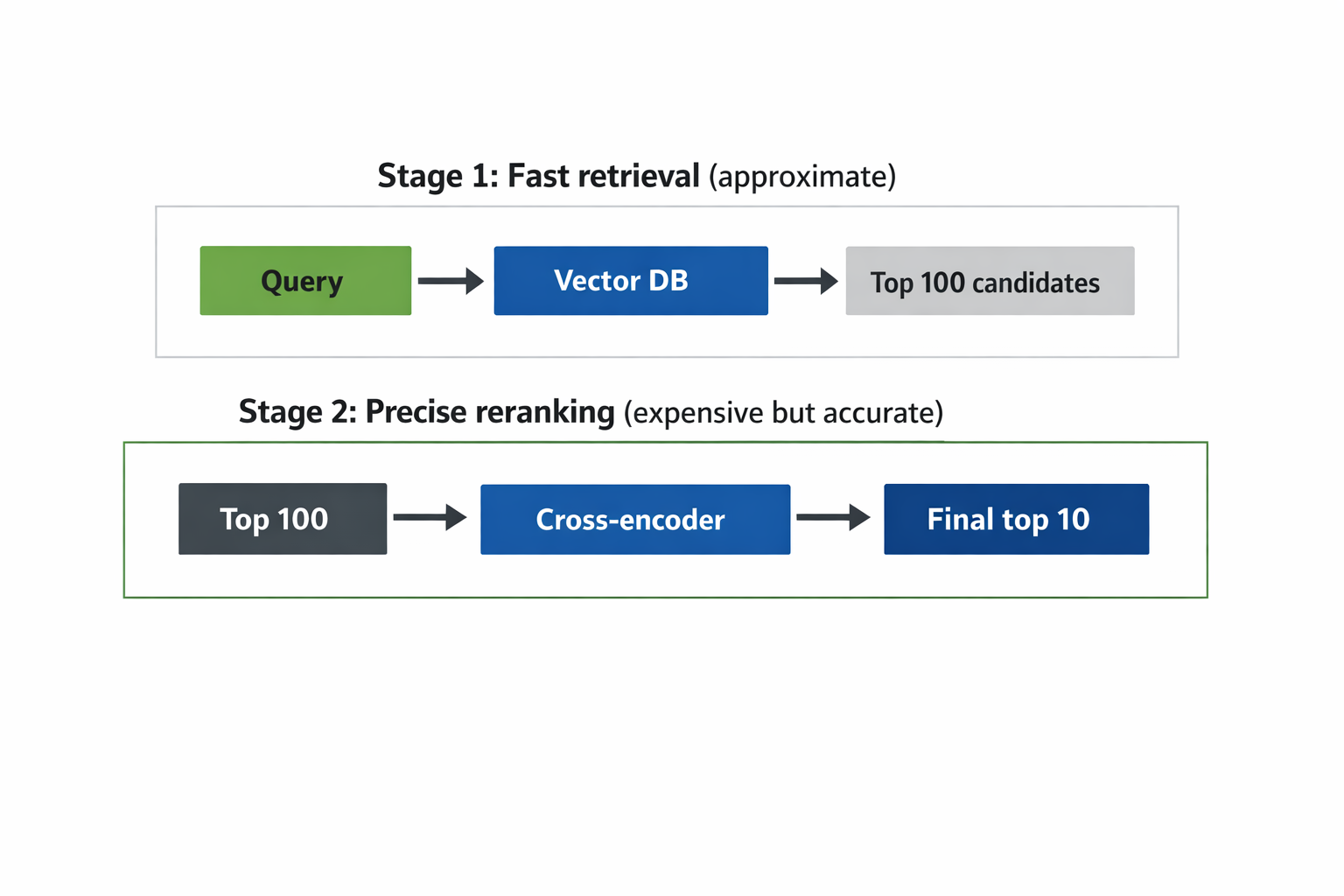

ANN Search → top-100 candidates → Re-Ranker → top-5 final results
(fast, ~10ms) (slower, ~50-200ms for 100 docs)
This two-stage design is sometimes called retrieve-then-rerank. The intuition: use a fast but approximate filter to reduce the search space from millions of documents to dozens, then apply an expensive but accurate model only to that small set. The total cost is manageable; the accuracy approaches what you would get from running the expensive model over the full corpus — without the cost.
💡 Mental Model: Think of ANN search as a first-round interview screen — it filters thousands of résumés down to twenty candidates quickly, using coarse criteria. Re-ranking is the in-depth interview: slower, more thorough, applied only to the shortlist. You would never invite every applicant for an in-depth interview, but you also would not hire purely on résumé without one.
🎯 Key Principle: Re-ranking is most valuable when the embedding model is general-purpose and the queries are specific. A general embedding model may cluster "database backup" and "database performance" closely together; a re-ranker that sees the full query "How do I schedule automated database backups on Sundays?" can correctly demote the performance documents.
Stage 4: Retrieval vs. Generation — Two Distinct Pipeline Stages
At this point in the pipeline, retrieval is complete. The system has produced a ranked list of the most relevant passages from the corpus. What happens next depends on what the application needs.
In a pure retrieval application — a traditional search interface, a document recommendation system, a code search tool — the ranked passages are returned directly to the user or calling application. The pipeline ends here.
In a Retrieval-Augmented Generation (RAG) application, the retrieved passages are passed as context to a language model (LM), which then generates a response grounded in those passages. The language model does not search; it reads and synthesizes. The retrieval system does not generate; it surfaces.
This distinction is more than semantic — it has important engineering consequences:
- Retrieval failures are silent. If the wrong passages are retrieved, the language model will produce a confident-sounding response grounded in irrelevant content. There is no automatic signal to the user that retrieval went wrong.
- Generation failures are visible but recoverable. A language model that hallucinates when given correct context is a generation problem, addressed by prompt engineering, model selection, or fine-tuning. A language model that produces correct output from wrong context is a retrieval problem — no amount of generation improvement fixes it.
- The interface between stages must be explicit. The retrieved passages should be passed to the LM with clear delimiters, source attribution, and ideally relevance scores, so the model can weigh its context appropriately.
Pure Retrieval Pipeline:
Query → Embed → ANN → Re-Rank → [Ranked Passages] → User
RAG Pipeline:
Query → Embed → ANN → Re-Rank → [Ranked Passages]
│
▼
┌──────────────────────┐
│ Context Window of LM │
│ (passages injected) │
└──────────┬───────────┘
│
▼
[Generated Response]
│
▼
User
⚠️ Common Mistake: Assuming that a better language model compensates for weak retrieval. It does not. A model that receives irrelevant passages has, at best, no useful information — and at worst, confidently wrong information. Retrieval quality is the ceiling on RAG quality. Optimize retrieval first.
💡 Pro Tip: When debugging a RAG system that produces incorrect answers, always inspect the retrieved passages before examining the language model's behavior. If the passages don't contain the answer, the problem is retrieval. If the passages contain the answer and the model ignores or distorts it, the problem is generation. These are different failure modes requiring different fixes.

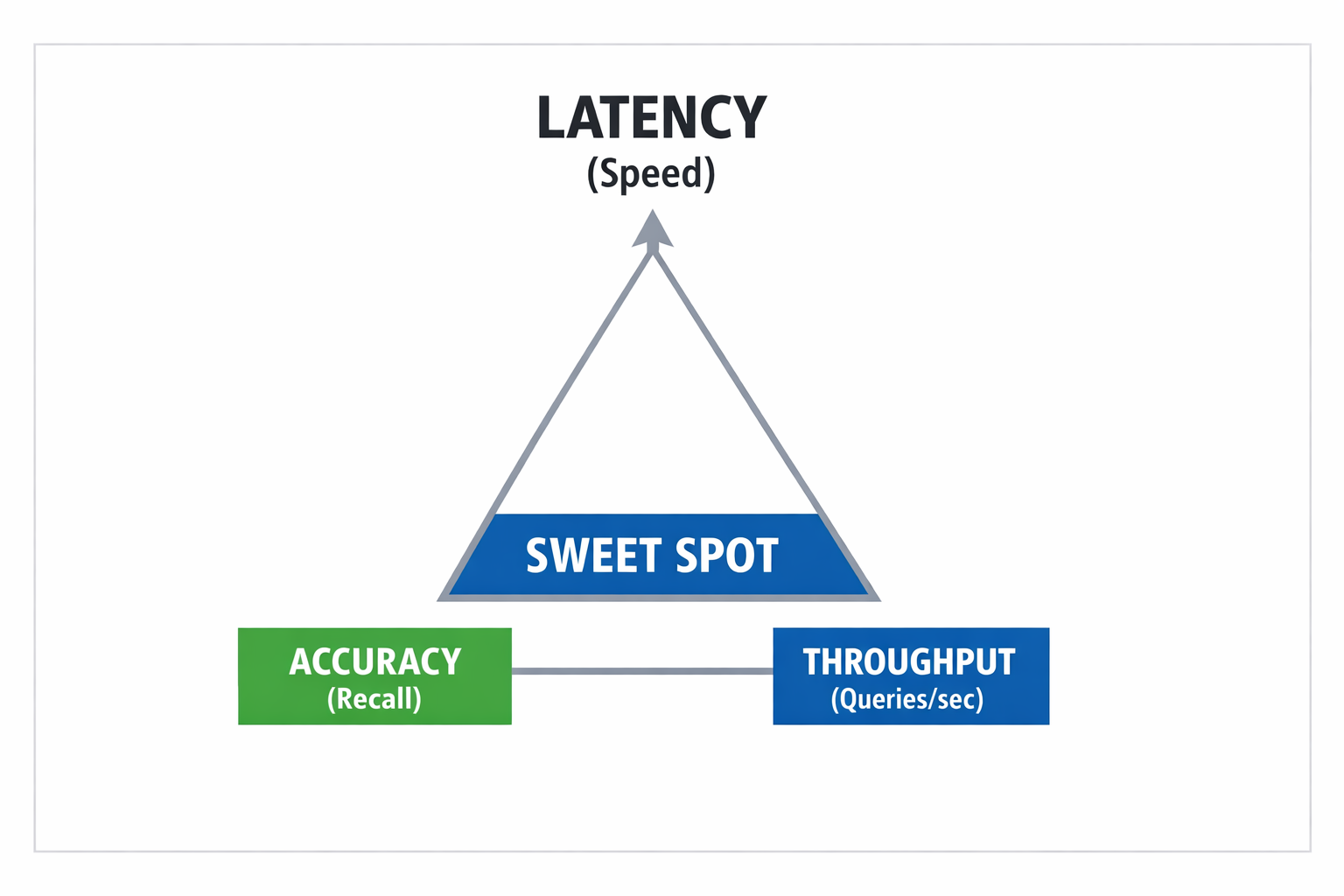

Stage 5: The Latency Budget — Architecture Flows from SLAs
Every architectural decision in the retrieval pipeline is ultimately constrained by a latency budget — the maximum end-to-end time a request can take before the user experience degrades. This budget is set by the application's Service Level Agreement (SLA), and it ripples through every tunable parameter in the system.
Consider two contrasting scenarios:
Interactive Search (50 ms SLA)
A user-facing search interface with a 50 millisecond SLA has almost no slack. Allocating that budget might look like:
Query embedding: ~5 ms
ANN search: ~10 ms
Re-ranker (top 20): ~20 ms
Network + overhead: ~10 ms
Total: ~45 ms ✓
──────────────────────────────
Forced choices:
- HNSW index (low query latency)
- Small nprobe / ef_search values
- Re-rank only top 20, not top 100
- Lightweight re-ranker model
- Embedding model served on GPU with batching
Batch Analytics or Async RAG (no interactive SLA)
A nightly document processing job or an async research assistant has a completely different budget. Here you can afford:
Query embedding: latency irrelevant
ANN search: IVF with high nprobe (high recall)
Re-ranker: Large cross-encoder over top-500 candidates
Generation: Large LM with long context window
Total: Seconds to minutes per query — acceptable
──────────────────────────────
Forced choices:
- IVF with high nprobe or even exact search
- Deep re-ranking for maximum accuracy
- No constraint on model size
The same embedding model, the same ANN algorithm family, the same re-ranker type — but tuned to completely different operating points because the latency budget changed. This is why blanket recommendations like "use HNSW" or "re-rank the top 100" are incomplete without specifying the SLA they were designed for.
🎯 Key Principle: There is no universally optimal ANN configuration. There are only configurations that satisfy a given recall target within a given latency budget over a given index size. All three variables must be specified together.
🧠 Mnemonic: Think R-L-S: Recall, Latency, Scale. Every ANN tuning decision moves you along these three axes simultaneously. Improving one axis typically costs you on one of the others. Knowing which axis matters most for your application is the first design question to answer.
Putting the Stages Together: The Full Picture
The five stages — query embedding, ANN search, re-ranking, retrieval output, and optional generation — are not independent modules bolted together arbitrarily. Each stage exists because of a specific limitation in the stage before it:
- Keyword search cannot capture meaning → embedding solves this
- Exact nearest neighbor search is too slow at scale → ANN solves this
- ANN sacrifices some accuracy for speed → re-ranking recovers accuracy
- Retrieval alone surfaces passages but doesn't synthesize → generation solves this
- Unconstrained generation produces hallucinations → grounded retrieval constrains the model
This chain of design decisions is cumulative and interdependent. Skipping re-ranking to save latency may degrade result quality enough to make the final output unreliable. Skipping ANN in favor of exact search may make the system too slow to use at scale. Understanding why each stage exists — what limitation it compensates for — is what allows you to make informed trade-offs rather than just copying an architecture pattern.
📋 Quick Reference Card: Retrieval Pipeline Stages
| 🎯 Stage | 🔧 What It Does | ⚡ Typical Latency | 🔒 Key Trade-off |
|---|---|---|---|
| 🧠 Query Embedding | Converts query to vector | ~1–10 ms | Same model as indexing required |
| 📚 ANN Search | Finds approximate nearest neighbors | ~5–50 ms | Recall vs. speed |
| 🔧 Re-Ranking | Scores candidates with cross-encoder | ~20–200 ms | Accuracy vs. compute |
| 📚 Retrieval Output | Returns ranked passages | ~0 ms | Passage quality = RAG ceiling |
| 🎯 LM Generation | Synthesizes grounded response (RAG) | ~500ms–5s | Hallucination risk if retrieval fails |
What Comes Next
You now have the end-to-end map. The next section applies this pipeline to a single concrete scenario — a technical documentation assistant — tracing every decision from how the corpus is chunked and embedded through how a specific user query is resolved. After that, the subsequent lessons peel back each layer of this pipeline and examine it in depth: how ANN indexes are built and tuned, how re-rankers are trained and evaluated, and how to instrument the full pipeline to diagnose failures in production.
The value of this pipeline-first view is that every detail you encounter from here forward has a home. When you learn that HNSW uses a skip-list-like structure, you know it lives in Stage 2. When you learn that cross-encoders process query-document pairs jointly, you know they live in Stage 3. The map doesn't change — only the resolution increases.
Putting It Together: A Worked Retrieval Scenario
The previous sections gave you the conceptual vocabulary: embeddings as coordinates in high-dimensional space, cosine similarity as a measure of directional alignment, ANN search as an efficient way to scan millions of vectors without exhaustive comparison. Now it is time to watch all of those pieces move together in a single, realistic scenario.
The system we will trace is a technical documentation assistant — the kind of tool that lets a developer type a natural-language question and receive a grounded answer drawn from a company's API reference pages, integration guides, and code examples. This is one of the most common RAG deployments in production, and it surfaces every major design decision in the retrieval pipeline. We will follow one query — "how do I authenticate with OAuth?" — from the moment documents enter the system to the moment the final answer is generated.
Stage 1: Ingesting the Corpus
Before any query can be answered, the raw documentation must be transformed into a searchable index. This process is called document ingestion, and the decisions made here silently govern everything that follows.
Imagine the corpus is roughly 800 Markdown files covering an HTTP API: endpoint references, authentication guides, rate-limit policies, SDK tutorials, and changelog entries. The total token count is around 1.2 million tokens — far too large to fit inside any language model's context window, and far too large to embed as single documents (embedding quality degrades badly on very long inputs).
Chunking
The first step is chunking: splitting each document into smaller pieces that the embedding model can encode meaningfully. The target here is roughly 300 tokens per chunk, with a 50-token overlap between adjacent chunks.
💡 Mental Model: Think of each document as a long strip of paper. You cut it into cards, but you let each card share its last few lines with the first few lines of the next card. That overlap ensures that a sentence straddling two cut points is fully represented in at least one chunk — rather than appearing half-finished in both.
Document (1 200 tokens)
│
├─ Chunk 1 [tokens 0–299]
├─ Chunk 2 [tokens 250–549] ← 50-token overlap with Chunk 1
├─ Chunk 3 [tokens 500–799] ← 50-token overlap with Chunk 2
├─ Chunk 4 [tokens 750–999]
└─ Chunk 5 [tokens 950–1199]
The 800 files yield roughly 14,000 chunks. Each chunk is stored in a vector database alongside its metadata: the section title (e.g., "OAuth 2.0 Authorization Code Flow"), the product version the page applies to, the canonical URL of the source page, and the chunk's position index within the original document. That metadata will matter later.
⚠️ Common Mistake: Chunking at arbitrary byte or character boundaries rather than semantic boundaries. A chunk that begins mid-sentence — "...returns a 401 if the token has expired. To refresh a token, send a POST request" — is harder for an embedding model to represent accurately because the opening fragment carries no coherent topic signal. Splitting at paragraph or section boundaries, even if it means slightly uneven chunk sizes, consistently produces better retrieval.
Embedding Each Chunk
Every chunk is passed through an embedding model to produce a dense vector — a list of floating-point numbers that encodes the chunk's meaning as a position in high-dimensional space. The resulting vectors are stored alongside the chunk text and metadata in the vector database.
At this point the index is complete. Nothing query-specific has happened yet. The database is simply a large collection of (vector, text, metadata) triples, ready to be searched.
Stage 2: Receiving the Query
A developer opens the documentation assistant and types:
*"how do I authenticate with OAuth?"
This plain-language sentence now enters the retrieval pipeline.
Embedding the Query
The query string is passed through the same embedding model used during ingestion. This produces a single query vector in the identical high-dimensional space. The word "same" is not incidental — if you embed your documents with Model A and your queries with Model B, the resulting vectors occupy different geometric spaces and similarity scores become meaningless. Consistency between ingestion-time and query-time embedding is a hard requirement.
🎯 Key Principle: A query is just another piece of text. It receives the same embedding treatment as every document chunk. The retrieval system does not distinguish between them — it only compares vectors.
ANN Search Returns 20 Candidates
The query vector is submitted to the vector database, which performs an Approximate Nearest Neighbor (ANN) search. The database scans its index — not exhaustively, but through a graph- or tree-based structure that narrows the search space — and returns the 20 chunks whose vectors are closest to the query vector by cosine similarity.
Query vector ──► ANN Search ──► Top-20 candidates
│
▼
[ Chunk A | sim: 0.91 ]
[ Chunk B | sim: 0.89 ]
[ Chunk C | sim: 0.88 ]
[ Chunk D | sim: 0.87 ]
...
[ Chunk T | sim: 0.74 ]
These 20 chunks are the candidate set — the raw output of the first retrieval stage. Their similarity scores reflect vector proximity, not necessarily answer quality. That distinction is about to become important.
Stage 3: Inspecting the Candidates — Why Chunking Matters
Let us look at what actually came back. Among the top 20 candidates, we find an instructive contrast:
Chunk B (similarity: 0.89) contains:
Authorization: Bearer {access_token}
Content-Type: application/json
X-Api-Version: 2
X-Request-Id: {uuid}
This is a raw HTTP header table copied directly from the API reference. It mentions no OAuth concepts in prose, contains no explanation of token acquisition, and provides no flow description. Yet it scored 0.89 — second in the entire candidate set.
Chunk F (similarity: 0.84) contains:
"OAuth 2.0 uses a delegated authorization model. The client first redirects the user to the authorization server, which issues an authorization code after the user consents. The client exchanges that code for an access token at the token endpoint, then includes the token as a Bearer credential in subsequent API calls..."
This chunk is semantically rich and directly answers the user's question — but it ranked sixth.
💡 Real-World Example: This divergence happens because the embedding model encodes the general topic of a chunk, not its pedagogical usefulness. Both chunks are unambiguously about API authentication with tokens. Their vectors point in similar directions. The embedding model has no way to score the header table lower just because it lacks explanatory prose — that distinction requires reasoning about the query's intent, which pure vector similarity cannot perform.
🤔 Did you know? This problem is sometimes called the specificity trap: short, highly specific chunks (code snippets, parameter tables, error code lists) often embed very close to keyword-rich queries precisely because every token in the chunk is topically dense. They look relevant by the numbers but fail on usefulness.
⚠️ Common Mistake: Treating the ANN similarity score as a quality score. It is a relevance proximity score. A chunk that is entirely on-topic but pedagogically useless will outscore a chunk that is genuinely helpful but uses slightly different vocabulary.
This is the moment where a two-stage retrieval architecture earns its complexity cost.
Stage 4: Re-Ranking with a Cross-Encoder
The 20 candidates are passed to a cross-encoder re-ranker. Unlike the embedding model — which encodes query and document independently and compares the resulting vectors — a cross-encoder takes the query and a candidate chunk as a joint input and produces a single relevance score for that pair.
Bi-encoder (Stage 1)
──────────────────────────────────────────────
Query ──► [Encoder] ──► q_vec
Chunk ──► [Encoder] ──► c_vec
Score = cosine(q_vec, c_vec) ← vectors never interact
Cross-encoder (Stage 2)
──────────────────────────────────────────────
[Query + Chunk] ──► [Encoder] ──► relevance_score
↑
Full attention across both texts
Because the cross-encoder attends to both texts simultaneously, it can detect that the user's question — "how do I authenticate" — is asking for a process explanation, not a list of HTTP headers. It re-scores each of the 20 candidates against the full query text.
After re-ranking, the order shifts meaningfully:
| Rank | Chunk | Cross-encoder score | Content type |
|---|---|---|---|
| 🥇 1 | Chunk F | 0.93 | OAuth flow prose explanation |
| 🥈 2 | Chunk J | 0.88 | Step-by-step code walkthrough |
| 🥉 3 | Chunk M | 0.81 | Token endpoint reference with context |
| 4 | Chunk A | 0.77 | General auth overview |
| 5 | Chunk B | 0.61 | HTTP header table only |
Chunk F — the prose explanation of the OAuth 2.0 flow — moves from sixth to first. Chunk B — the bare header table — drops from second to fifth. The cross-encoder did not change the candidate set; it reordered it by reasoning about the query's intent rather than just its topical direction.
💡 Pro Tip: Cross-encoders are slower than bi-encoders because they must process every (query, chunk) pair individually rather than pre-computing chunk vectors once. Running a cross-encoder over your entire corpus for every query would be prohibitively expensive. The two-stage design — fast ANN for recall, slow cross-encoder for precision — exists precisely to manage this cost. Retrieve broadly with the bi-encoder, re-rank narrowly with the cross-encoder.
🎯 Key Principle: Recall and precision pull in opposite directions. The ANN stage maximizes recall: cast a wide net, bring back 20 candidates even if some are imperfect. The re-ranking stage maximizes precision: from those 20, identify the 3–5 that actually answer the question. You need both stages to do their job.
Stage 5: Generating the Answer from the Top 3 Chunks

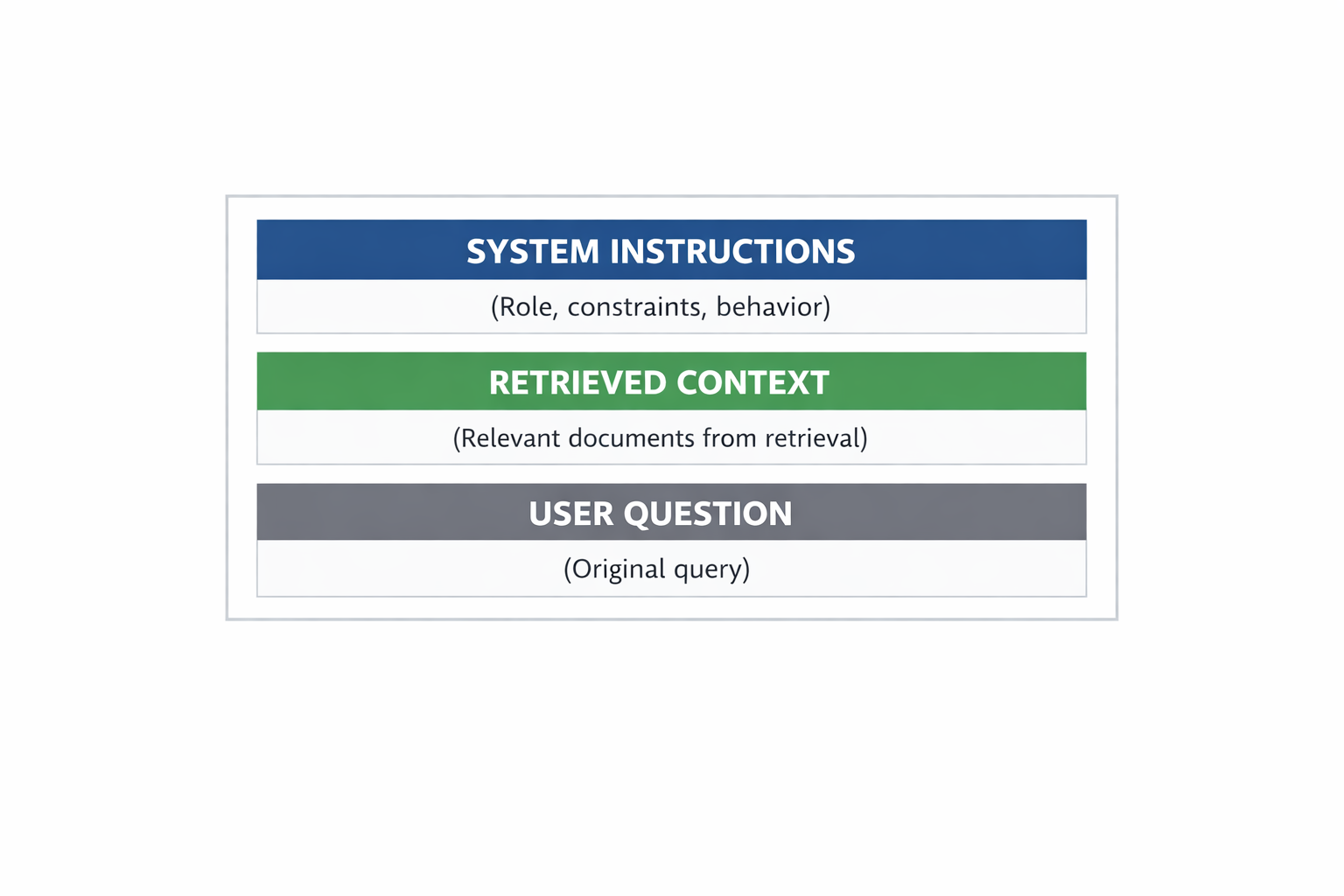

The top 3 re-ranked chunks are assembled into a context window and passed to the language model along with the user's query. The prompt structure looks roughly like:
System: You are a technical documentation assistant.
Answer only from the provided context. Cite sources.
Context:
[1] (OAuth 2.0 Authorization Code Flow — docs.example.com/auth/oauth)
"OAuth 2.0 uses a delegated authorization model. The client first
redirects the user to the authorization server..."
[2] (Implementing OAuth in Python — docs.example.com/guides/python-oauth)
"import requests\n\ndef get_token(code, client_id, client_secret):
response = requests.post(TOKEN_ENDPOINT, data={...})
return response.json()['access_token']"
[3] (Token Endpoint Reference — docs.example.com/api/token)
"POST /oauth/token\nRequired parameters: grant_type, code,
client_id, client_secret, redirect_uri"
User: how do I authenticate with OAuth?
The language model synthesizes a response: it explains the authorization code flow in plain language (from Chunk 1), references the Python code example (from Chunk 2), and cites the token endpoint parameters (from Chunk 3). The response is grounded — every factual claim traces back to a retrieved chunk.
The Retrieval Ceiling
This is the critical architectural insight the worked example is designed to make concrete:
🎯 Key Principle: Retrieval quality is the ceiling on answer quality. A language model can only synthesize, rephrase, and reason about the information it receives in context. If the top 3 chunks do not contain the answer, no amount of model capability will conjure it from nothing. A more capable language model cannot compensate for a retrieval failure — it will either hallucinate or say it does not know.
Consider what would have happened if the re-ranking stage had not run and the bare HTTP header table (Chunk B) remained in the top 3 instead of the prose explanation:
❌ Wrong outcome: The language model receives context that lists authentication headers but never explains how to obtain a token. A developer who does not already understand OAuth will read the answer and still not know what to do. The model produced fluent prose about incomplete information.

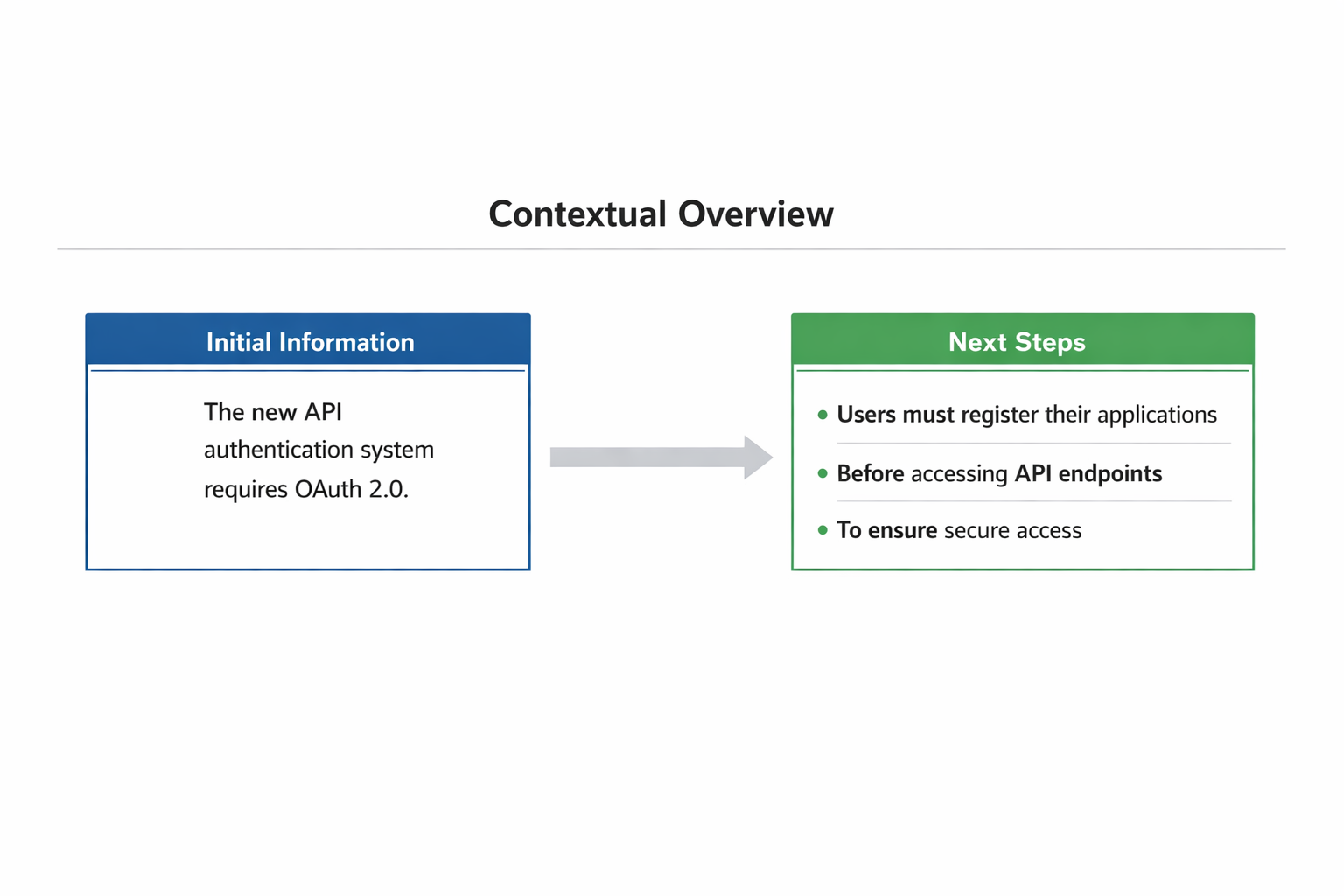

✅ Correct outcome: After re-ranking, the prose explanation of the OAuth flow occupies the top slot. The model explains token acquisition, cites the code example, and references the endpoint parameters. The developer can follow the steps without additional searching.
The quality of the final answer differs not because the language model changed, but because the retrieval pipeline delivered different context.
Tracing the Full Pipeline
Here is the complete flow from raw documents to final answer, with the key decision at each stage:
INGESTION (offline)
┌─────────────────────────────────────────────────────────┐
│ Raw docs ──► Chunker (300 tokens, 50-token overlap) │
│ ──► Embedding model ──► Dense vectors │
│ ──► Vector DB (vector + text + metadata) │
└─────────────────────────────────────────────────────────┘
QUERY (online)
┌─────────────────────────────────────────────────────────┐
│ User query ──► Embedding model ──► Query vector │
│ ──► ANN search ──► Top-20 candidates │
│ ──► Cross-encoder re-ranker ──► Top-3 │
│ ──► LLM (query + context) ──► Answer │
└─────────────────────────────────────────────────────────┘
KEY DECISIONS
┌──────────────────┬────────────────────────────────────┐
│ Stage │ Primary quality lever │
├──────────────────┼────────────────────────────────────┤
│ Chunking │ Boundary placement, overlap size │
│ Embedding │ Model choice, consistency │
│ ANN search │ Candidate set size (top-K) │
│ Re-ranking │ Cross-encoder precision │
│ LLM generation │ Prompt structure, citation policy │
└──────────────────┴────────────────────────────────────┘
📋 Quick Reference Card:
| 🔧 Component | 📚 What it does | ⚠️ What breaks it |
|---|---|---|
| 🔧 Chunker | Splits docs into embeddable units | Arbitrary byte splits, no overlap |
| 📚 Embedding model | Encodes meaning as a vector | Mismatched models at ingest vs. query |
| 🎯 ANN search | Retrieves candidate set by proximity | Top-K too small (low recall) |
| 🔒 Re-ranker | Reorders by intent alignment | Skipping it entirely |
| 🧠 LLM generation | Synthesizes answer from context | Poor context → hallucinated gaps |
What the Worked Example Reveals
Walking this single query end-to-end makes four things apparent that are hard to convey in the abstract.
First, every stage is load-bearing. Remove the overlap from the chunking step and boundary-straddling sentences become unretrievable. Use a different embedding model for queries than for documents and the geometry of the similarity scores collapses. Skip the re-ranker and a bare header table can displace a prose explanation in the final context. Each component failure degrades the answer in a specific, diagnosable way.
Second, the metadata stored alongside each chunk is not decorative. The product version tag on each chunk allows the system to filter candidates to the version the developer is actually using. The source URL allows the final answer to cite the exact documentation page. These fields do no work during the embedding stage but become essential for filtering, attribution, and debugging.
Third, retrieval errors compound. If the top-3 context window is wrong, no downstream fix helps. This is why evaluation of retrieval pipelines focuses on metrics like recall at K (did the correct chunk appear anywhere in the top-K candidates?) and mean reciprocal rank (how highly was it ranked?) — before anyone measures the quality of the generated answer. Fixing retrieval has disproportionate impact because it lifts the ceiling for everything downstream.
Fourth, the re-ranker solves a specific, narrow problem: reordering a small candidate set by intent alignment. It is not a replacement for good chunking or a strong embedding model. Those upstream decisions determine what enters the candidate set. The re-ranker can only elevate what is already there.
🧠 Mnemonic: CARE — Chunk thoughtfully, Align embedding models, Re-rank for intent, Evaluate retrieval before generation. The order matters because each stage depends on the one before it.
By the time you reach the language model in this pipeline, retrieval has already done the hardest work. The model's job is to organize, synthesize, and phrase — important work, but constrained entirely by what the retrieval stages delivered. That constraint is not a limitation of the design; it is the design. Grounding the model in retrieved evidence is what prevents it from generating plausible-sounding but unfounded answers. The retrieval pipeline is the foundation of trustworthiness, not just an efficiency trick.
Common Misconceptions and Early Mistakes
Every powerful technology accumulates a folklore of misuse, and semantic search is no exception. The mistakes covered in this section are not hypothetical — they emerge predictably from the gap between the intuitive appeal of embeddings and the mechanical reality of how they work. Understanding why each mistake causes problems is more valuable than simply memorizing a list of rules, because the reasoning generalizes to novel situations you will encounter when the specific tools have changed but the underlying geometry has not.
This section examines five high-cost mistakes in the order a practitioner typically encounters them: at indexing time, at query design time, at document preparation time, at evaluation time, and at serving time. Each one is accompanied by a concrete explanation of the failure mechanism, not just a warning label.
Mistake 1: Using Different Embedding Models at Indexing and Query Time
⚠️ Common Mistake: Running one embedding model when you build your index and a different one — or even a different version of the same model — when you process a query.
This mistake is so damaging that it warrants a geometric explanation. When an embedding model converts a string into a vector, it is mapping that string to a specific point in a high-dimensional space. The shape of that space — which directions encode semantic similarity, where the origin sits, how far apart synonyms land — is entirely determined by the model's weights. Two different models produce two entirely different spaces, as distinct as Cartesian coordinates and polar coordinates. A cosine similarity score computed between a vector from Model A and a vector from Model B measures nothing meaningful. It is the numerical equivalent of measuring the distance between a temperature in Celsius and one in Fahrenheit without converting units first.
Indexing Stage Query Stage
───────────────── ─────────────────
"neural network" "neural network"
│ │
Model A Model B
│ │
▼ ▼
[0.82, -0.14, 0.33, ...] [0.21, 0.67, -0.88, ...] ← DIFFERENT SPACE
│ │
└──── cosine similarity ────┘
↓
meaningless number
The failure mode is particularly treacherous because the system will not throw an error. Vectors are just arrays of floating-point numbers; your vector database has no way of knowing they were produced by incompatible models. The pipeline will return results with confidence scores, those scores will look plausible, and the underlying retrieval quality will be quietly terrible.
🎯 Key Principle: Always pin the model identifier and version in your indexing pipeline and your query pipeline using the same configuration source — ideally a single constants file or environment variable that both stages read. If you need to upgrade the model, re-embed the entire corpus before deploying the new query encoder. A partial re-embed (some documents on the new model, some on the old) is equivalent to having no model consistency at all.
💡 Pro Tip: Add a metadata field to every vector record that stores the model identifier used to produce it. When the query arrives, log the model it was encoded with and assert that the two match before executing the similarity search. This turns a silent failure into a loud, detectable one.
Mistake 2: Assuming Semantic Search Is Always Better Than Keyword Search
The word "semantic" carries a quality signal that can mislead newcomers into treating embeddings as a universal upgrade over BM25. The reality is more nuanced: embeddings encode meaning, and meaning is only useful when there is a semantic neighborhood worth exploiting. For some query types, there is no such neighborhood, and keyword search will outperform embedding-based retrieval by a wide margin.
Consider these query strings:
SKU-88291-BCVE-2023-44487Ximinez(a rare proper noun)errno 28
An embedding model trained on natural language has seen essentially no useful context for these strings. It cannot place SKU-88291-B near SKU-88291-A in a semantically meaningful way, because the training corpus did not teach the model what that hyphenated alphanumeric structure means. BM25, by contrast, treats retrieval as an exact and partial token matching problem — which is precisely what you want when the query is a product code, a serial number, a CVE identifier, or an error code.
Query: "SKU-88291-B"
BM25 Retrieval Embedding Retrieval
───────────────────────── ──────────────────────────────
Matches exact token string → Embeddings tokens into a space
Returns documents containing where alphanumeric codes have
"SKU-88291-B" at top rank no reliable semantic neighbors
→ noisy, low-confidence results
❌ Wrong thinking: Semantic search is better than keyword search, so I should replace BM25 entirely.
✅ Correct thinking: Semantic search and keyword search are complementary. Use hybrid retrieval that combines BM25 scores with embedding similarity, and tune the blend based on your query distribution.
The standard solution in production systems is hybrid retrieval: run both BM25 and semantic search in parallel, then fuse the ranked lists using a strategy such as Reciprocal Rank Fusion (RRF). RRF combines ranked lists by summing the reciprocal of each document's rank across all retrievers, which rewards documents that rank highly on at least one signal without requiring you to normalize scores across incompatible scales.
🤔 Did you know? The empirical observation that BM25 remains surprisingly competitive on many retrieval benchmarks is not a failure of the research community — it reflects the genuine information-theoretic insight that exact string matching is a lossless operation, while embedding is a lossy compression. When the query is a precise identifier, lossy compression discards the very signal you need.
Mistake 3: Embedding Entire Documents Rather Than Chunks
This is arguably the most common architectural mistake made by practitioners who understand embeddings conceptually but have not yet internalized what a single vector actually represents.
A vector is a summary. When you embed a 10-page PDF into a single 1536-dimensional vector, that vector is a weighted average of the semantic content of every sentence in the document. If the document covers database indexing strategies in section 2, query optimization in section 4, and backup procedures in section 7, the resulting vector floats somewhere in the middle of all three topics — adjacent to none of them in any precise way.
10-Page Document
────────────────────────────────────────────────────
│ Sec 1: Intro │ Sec 2: Indexing │ Sec 3: Queries │
│ Sec 4: Backup │ Sec 5: HA │ ... │
────────────────────────────────────────────────────
│
Single Embedding
│
▼
[averaged vector] ←── too far from any specific topic
Query: "How do I configure a covering index?"
│
▼
Query vector sits near "Sec 2: Indexing"
but document vector is far from both
│
▼
Low cosine similarity → document not retrieved
(or retrieved but ranked below shorter, on-topic docs)
The solution is chunking: splitting documents into smaller units before embedding. Each chunk produces a vector that faithfully represents a narrow slice of meaning, making it retrievable when a query targets that specific slice.
Chunking strategy matters almost as much as the decision to chunk at all. Three common approaches:
- 🔧 Fixed-size chunking — Split at a fixed token count (e.g., 256 or 512 tokens) with an overlap window. Fast and simple, but may split sentences mid-thought.
- 📚 Structural chunking — Split at document structure boundaries (headings, paragraphs, list items). Preserves semantic coherence but requires parsing.
- 🧠 Semantic chunking — Embed consecutive sentences and split when the cosine similarity between adjacent embeddings drops below a threshold, indicating a topic shift. Computationally more expensive but produces the most coherent units.
⚠️ Common Mistake: Chunking too small. Chunks of 1–2 sentences often lack enough context for the embedding to be informative. A query about "configuring a covering index" needs at least a paragraph of surrounding explanation to embed near the right semantic neighborhood. As a practical starting point, chunks of 100–400 tokens with a 10–20% overlap tend to balance granularity and context, though the optimal range depends on your document type and query style.
💡 Mental Model: Think of a vector as a postcard rather than a book. A postcard can convey a single clear message. If you try to describe an entire novel on one postcard, the message becomes incoherent. Chunk your documents into postcard-sized units, and each one can communicate its meaning precisely.
Mistake 4: Skipping Evaluation
Of the five mistakes in this section, skipping evaluation is the one most likely to survive undetected longest — and therefore cause the most damage when it finally surfaces.
The implicit assumption behind skipping evaluation is that if the system returns some plausible-looking results, it is probably working. This assumption is false for a subtle reason: retrieval systems can look qualitatively good on the queries a developer thinks to test while performing poorly on the distribution of queries real users actually submit. Without a labeled test set — a collection of queries paired with their ground-truth relevant documents — there is no principled way to distinguish a working system from a confidently wrong one.

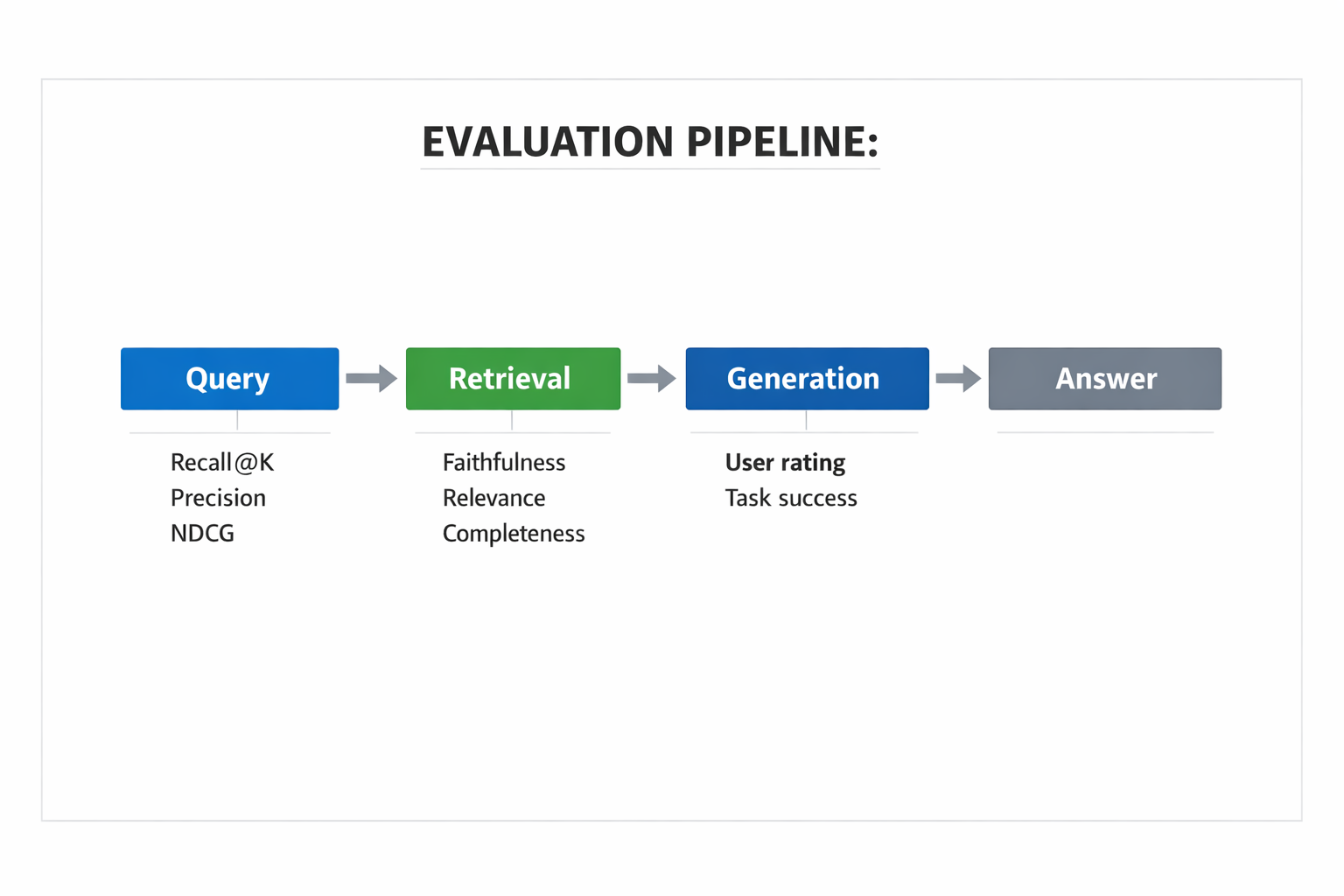

Two metrics are foundational for measuring retrieval quality:
Recall@k answers: Of all documents that are relevant to this query, what fraction appear in the top-k retrieved results? A Recall@5 of 0.80 means that 80% of relevant documents appear in the top 5 results. This metric penalizes systems that miss relevant material.
Mean Reciprocal Rank (MRR) answers: On average, how high does the first relevant result appear in the ranked list? If the first relevant document appears at rank 1, the reciprocal rank is 1.0. At rank 2, it is 0.5. At rank 5, it is 0.2. MRR is the mean of these reciprocal ranks across all queries. This metric penalizes systems that bury the most relevant result.
Evaluating a retrieval pipeline:
Test Query: "How do I configure TLS for an inbound connection?"
Ground Truth: [doc_42, doc_17, doc_93] ← labeled relevant docs
System Returns: [doc_17, doc_55, doc_42, doc_08, doc_93]
↑ ↑ ↑
rank 1 rank 3 rank 5
Recall@3 = 2 relevant in top 3 / 3 total relevant = 0.67
Recall@5 = 3 relevant in top 5 / 3 total relevant = 1.00
Rec. Rank = 1/1 (doc_17 is first relevant) = 1.00
Building a labeled test set does not require labeling thousands of query-document pairs from scratch. Common strategies include:
- 🎯 Mining user logs for queries where users clicked, bookmarked, or acted on a result (implicit relevance feedback)
- 🔧 Using an LLM to generate plausible queries for each chunk during document ingestion, creating a synthetic evaluation set
- 📚 Asking domain experts to label a representative sample of 100–200 query-document pairs as a minimum viable test set
🎯 Key Principle: A retrieval pipeline without a test set is not a finished system — it is a prototype. The test set is what allows you to detect regressions: cases where a change intended to improve the system actually degrades it. Every time you change the embedding model, chunking strategy, index parameters, or re-ranking model, you need the test set to verify the direction of the change.
💡 Real-World Example: A team ships a documentation search system and receives positive feedback from early users. Six months later, they upgrade the embedding model to a newer version, re-embed the corpus, and deploy without running evaluation. Queries that previously retrieved the correct API reference now return tangentially related conceptual articles. No alert fires because there is no automated quality check. The regression is discovered weeks later through a surge in support tickets. The test set they never built would have caught it in minutes.
Mistake 5: Treating Re-Ranking as Optional Polish
Re-ranking is frequently positioned as a performance enhancement — something you add when you want a little extra precision. This framing understates its importance for anything beyond prototype-quality retrieval.
Here is the mechanical reason re-ranking matters. Approximate nearest-neighbor search — the algorithm that retrieves candidates from a vector index at scale — operates on a compressed representation of the vector space. It trades a small amount of accuracy for large gains in speed and memory efficiency. The candidates it returns are likely to be relevant, but their ordering is approximate. The top-ranked candidate from ANN search is not guaranteed to be the most semantically relevant document to the query; it is the document whose compressed vector representation is closest to the query vector under the index's approximation scheme.
Re-ranking applies a more computationally expensive but more precise model — typically a cross-encoder — to the small candidate set (often 20–100 documents) returned by the first-stage retriever. A cross-encoder takes the query and a candidate document as a joint input and produces a relevance score, allowing it to model the interaction between query and document rather than comparing independent embeddings.
Stage 1: Bi-encoder (fast, approximate)
─────────────────────────────────────────
Query embedding ──┐
├── cosine similarity ── ranked candidates [c1, c2, ... c50]
Doc embeddings ──┘
(pre-computed)
Stage 2: Cross-encoder (slower, precise)
─────────────────────────────────────────
For each candidate:
[query + candidate] ── cross-encoder ── relevance score
↓
re-ranked top-k results
The quality gap between a pipeline with and without re-ranking is not cosmetic. On realistic query distributions that include negation ("X without Y"), comparison ("difference between X and Y"), and multi-hop reasoning ("how does X affect Y given Z"), bi-encoders struggle because they must compress the full meaning of both query and document into independent vectors before comparing them. Cross-encoders see both simultaneously and can reason about the specific relationship between them.
❌ Wrong thinking: Re-ranking is extra compute cost I'll add later if users complain.
✅ Correct thinking: For any application where retrieval quality directly affects user outcomes — customer support, legal research, medical documentation, code assistance — re-ranking should be in the baseline design, not an afterthought.
⚠️ Common Mistake: Re-ranking a candidate set that is too small. If Stage 1 retrieves only 5 candidates and re-ranks them, you have not given the cross-encoder enough material to work with. The relevant document may not be in those 5 at all. A common pattern is to retrieve 20–100 candidates at Stage 1 and re-rank down to the top 3–10. The exact numbers depend on your latency budget and the density of your corpus.
🧠 Mnemonic: Think of retrieval as a audition → callback process. The bi-encoder runs open auditions and admits a broad pool of candidates (recall-oriented). The cross-encoder runs callbacks with full attention on each candidate (precision-oriented). Neither stage alone produces a great cast.
Putting the Mistakes Together
These five mistakes are not independent. They tend to compound: a team that skips evaluation has no way to detect that their document-level embeddings are producing poor recall, which means they never discover that adding chunking and re-ranking would close the gap, and they never notice when a model version mismatch silently breaks the system after a dependency update.
📋 Quick Reference Card: The Five Early Mistakes
| Mistake | Root Cause | Primary Symptom | Fix | |
|---|---|---|---|---|
| ⚠️ | Mixed model versions | Different vector spaces | Meaningless similarity scores | Pin model ID in both stages |
| ⚠️ | Semantic-only retrieval | No semantic neighborhood for codes | Poor recall on exact identifiers | Hybrid BM25 + embeddings |
| ⚠️ | Document-level embedding | Vector averages all topics | Specific paragraphs not retrieved | Chunk before embedding |
| ⚠️ | No evaluation | No ground truth baseline | Silent regressions undetected | Build labeled test set |
| ⚠️ | No re-ranking | Approximate ANN ordering | Poor precision on complex queries | Add cross-encoder re-ranker |
The common thread across all five is the gap between what feels right intuitively and what the underlying mechanics actually require. Embeddings feel like magic — you feed in text, and the model understands it. But the understanding is geometric, approximate, and model-specific. Respecting those constraints is what separates a system that works in a demo from one that works reliably in production.
With these failure modes mapped clearly, you are in a strong position to engage with the deeper mechanics in the lessons ahead: how vector databases manage approximate nearest-neighbor search under the hood, how hybrid retrieval systems fuse ranked lists without introducing their own artifacts, and how evaluation frameworks scale beyond the labeled test set to continuous quality monitoring.
Key Takeaways and What Comes Next
You have now moved through the full arc of why modern search changed, how it works mechanically, and where practitioners go wrong when they first build with it. Before diving into the specialized lessons ahead, it is worth pausing to consolidate what you have actually learned — not just a list of vocabulary words, but a set of durable ideas that will guide every architectural decision you make in this domain.
This section does two things: it crystallizes the core mental models from the lesson into a form you can carry forward, and it maps the road ahead so you know exactly what each upcoming lesson will add to the foundation you have built here.
The Central Insight, Stated Precisely
The single most important idea in this lesson is deceptively simple: meaning can be represented as position.
Keyword search treats a document as a bag of tokens and asks, "Does this bag contain the tokens in the query?" Semantic search treats a document as a point in a high-dimensional geometric space and asks, "Is this point close to the query point?" The shift from one question to the other is not a tweak — it is a change in the underlying theory of what "relevance" means.
🎯 Key Principle: Semantic search substitutes geometric proximity for token overlap. Two pieces of text are considered related not because they share words, but because the model that encoded them placed them near each other in vector space. The quality of that judgment depends entirely on what the model learned during training.
This reframing has a practical consequence that is easy to miss: retrieval quality is now bounded by representation quality. In keyword search, if a document contains the right words, it will be found. In semantic search, if the embedding model did not learn to associate two concepts, the document will not surface — regardless of how good your index or re-ranker is. This is why model selection is not a configuration detail; it is a first-order architectural choice.
💡 Mental Model: Think of the embedding model as a cartographer drawing a map of meaning. Documents and queries are cities on that map. Retrieval is navigation — you ask "which cities are closest to where I'm standing?" If the cartographer drew the map badly (trained on the wrong domain, or with too low a resolution), no amount of better roads or faster vehicles will get you to the right city.
The Three-Component Architecture
Every semantic search system, regardless of the stack it runs on, is built from three components. Understanding their roles — and their interactions — is more valuable than knowing any specific tool.
┌─────────────────────────────────────────────────────────────┐
│ SEMANTIC SEARCH PIPELINE │
├──────────────────┬──────────────────┬───────────────────────┤
│ EMBEDDING MODEL │ INDEX │ RE-RANKER │
│ │ │ (optional) │
│ Text → Vector │ Vector → Fast │ Candidates → │
│ │ Neighbor Lookup │ Precision-Ordered │
│ ● Encodes │ │ Results │
│ meaning │ ● ANN search │ │
│ ● Determines │ ● Trades recall │ ● Slower but more │
│ semantic │ for speed │ accurate │
│ resolution │ ● Config │ ● Reads full text, │
│ │ affects │ not just vectors │
│ │ accuracy │ │
└──────────────────┴──────────────────┴───────────────────────┘
↑ ↑ ↑
"What does "Where do I "Of these
this mean?" find similar?" candidates,
which is best?"
🔧 The Embedding Model encodes text into vectors. Its training domain, vector dimensionality, and context window length determine which semantic distinctions it can and cannot capture. A model trained primarily on general web text will struggle with specialized medical or legal terminology — not because it is a bad model, but because it did not see enough signal to place those concepts precisely on its map.
📚 The Index stores the vectors and answers nearest-neighbor queries at scale. Most production indexes use approximate nearest neighbor (ANN) algorithms that trade a small, configurable amount of recall for dramatically faster query times. The word "approximate" matters: an index that is tuned too aggressively for speed will drop relevant results before the re-ranker ever sees them.
🎯 The Re-Ranker (when present) takes the top-K candidates from the index and re-scores them using a more expensive, more accurate model — typically one that reads the query and each candidate together rather than independently. Re-ranking improves precision but adds latency and cost, so its depth (how many candidates it processes) is a tunable parameter, not a fixed one.
Why No Component Works in Isolation
One of the most practically important lessons from this foundation is that the pipeline is a system, not a collection of interchangeable parts. A weakness in any component propagates forward and limits what downstream components can fix.
Consider these interaction effects:
Chunk boundaries affect embedding quality. If a document is split mid-sentence or mid-concept, the resulting vector represents a fragment, not a complete thought. The best embedding model in the world cannot encode meaning that was cut off at the chunking stage.
Index recall caps re-ranking effectiveness. A re-ranker can only reorder what the index returns. If the index is configured so aggressively for speed that it misses 20% of genuinely relevant documents, the re-ranker cannot recover them — they are simply gone from the candidate set.
Model choice constrains index configuration. Some embedding models produce vectors where cosine similarity is the appropriate distance metric; others are trained for dot product. Using the wrong metric with a given model produces degraded results even with a correctly built index.
Re-ranking depth interacts with latency budgets. Re-ranking 200 candidates produces better precision than re-ranking 20, but at a cost. This tradeoff is not a one-time decision — it should be calibrated against the latency requirements of the application and revisited as traffic scales.
⚠️ Common Mistake — Mistake 1: Treating pipeline components as independent and optimizing each in isolation. If you evaluate your embedding model on a benchmark dataset, choose your index configuration based on synthetic throughput tests, and set your re-ranking depth arbitrarily, you are optimizing three separate systems that do not constitute your actual pipeline. End-to-end evaluation on realistic queries and real documents is the only measurement that matters.
🤔 Did you know? In practice, practitioners often discover that improving chunk quality — something that requires no new models or infrastructure — produces larger gains in retrieval quality than swapping to a more powerful embedding model. This is because garbage-in, garbage-out applies at the chunking stage: a fragmented chunk produces a fragmented embedding, and a fragmented embedding produces an unreliable vector, no matter how sophisticated the downstream components are.
Semantic and Keyword Retrieval Are Complementary
A common misreading of this lesson is that semantic search replaces keyword search. It does not. They solve different problems, and they fail in different, complementary ways.
❌ Wrong thinking: "We've switched to semantic search, so we no longer need keyword matching."
✅ Correct thinking: "Semantic search handles conceptual similarity well; keyword search handles exact-match precision well. A production system benefits from both, combined appropriately."
Semantic search struggles with exact, rare, or highly specific tokens — product codes, proper nouns, version numbers, technical identifiers. When a user queries "error code E_AUTH_TOKEN_EXPIRED", an embedding model may not place that exact string close to the relevant documentation because the specific token pattern was rare in training data. A keyword index, by contrast, finds it instantly.
Keyword search, as established in the first lesson, struggles with paraphrase, synonym, and intent gaps — exactly the territory where semantic search excels.
🧠 Mnemonic: Think of it as "BM25 for the surface, embeddings for the depth." Keyword retrieval reads the literal text; semantic retrieval reads the underlying meaning. Neither reads everything. A hybrid system reads both layers.
The child lessons on hybrid retrieval systems will show you the specific mechanisms — reciprocal rank fusion, weighted score combination, query routing — by which these two retrieval modes are merged into a single ranked result list. For now, the conceptual foundation is this: they are not competing answers to the same question; they are answers to different questions, both of which need to be answered.
Summary Table: Core Concepts at a Glance
📋 Quick Reference Card: Foundations of Modern AI Search
| Concept | What It Is | Why It Matters | Where It Can Break |
|---|---|---|---|
| 🔢 Embedding | A dense numerical vector representing the meaning of a text chunk | Enables geometric comparison of meaning across documents and queries | Out-of-domain text, rare terminology, poor chunk boundaries |
| 📐 Vector Space | The high-dimensional geometric space in which embeddings live | Geometric proximity in this space substitutes for token overlap | Distance metric mismatches, dimensionality–quality tradeoffs |
| 🗂️ ANN Index | A data structure enabling fast approximate nearest-neighbor search | Makes vector search tractable at scale | Aggressive speed tuning drops recall before re-ranking |
| 🔄 Re-Ranker | A model that re-scores candidates by reading query and document together | Improves precision beyond what vector similarity alone provides | Cannot recover candidates the index already dropped |
| ✂️ Chunking | The process of splitting documents into embeddable segments | Determines the semantic granularity of what gets indexed | Mid-concept splits produce fragmented, misleading vectors |
| 🔀 Hybrid Retrieval | Combining keyword (BM25) and semantic (vector) search results | Covers complementary failure modes of each approach | Poorly calibrated fusion weights; routing applied at wrong layer |
What You Now Understand That You Didn't Before
It is worth naming this explicitly, because foundational knowledge becomes invisible once internalized.
Before this lesson, a reasonable mental model of search might have been: "You type words, the system finds documents containing those words, and you get results." That model is not wrong — it accurately describes keyword retrieval — but it hits a ceiling. It cannot explain why a search for "how do I revoke a user's access" fails to surface a document titled "Deleting Authentication Tokens", even though they are about the same thing.
After this lesson, you have a more complete model:
🧠 Both the query and the document are mapped to positions in a shared geometric space. Documents that land near the query's position are surfaced as results, regardless of whether they share any words with the query. The mapping is performed by a model that learned associations from training data, which means the quality of the mapping depends on whether the training data was relevant to your domain.
📚 That mapping is not lossless or perfect. Chunking, model choice, and index configuration each affect what gets into the geometric space and how accurately positions reflect meaning. The pipeline is a chain, and every link in the chain has its own failure modes.
🔧 Keyword and semantic retrieval address different kinds of relevance. A system that uses only one of them is deliberately leaving signal on the table. The upcoming lessons on hybrid retrieval will show how to collect that signal.
🎯 Evaluation cannot be component-by-component. Because the pipeline is a system, the right question is always: "Given a realistic query, does the system surface the right documents?" Not: "Is my embedding model good on this benchmark?" or "Is my index fast?"
⚠️ Critical point to carry forward: The most common single mistake practitioners make is investing heavily in model selection while underinvesting in chunk quality and end-to-end evaluation. A carefully chunked corpus with a good-but-not-great embedding model will reliably outperform a poorly chunked corpus with the best available model. Get the fundamentals right before reaching for the most capable components.
Practical Applications: Three Places to Apply This Immediately
Foundational knowledge earns its value by changing what you do, not just what you know. Here are three concrete places where the ideas from this lesson apply directly:
1. Auditing an Existing Search System
If you work with or inherit a retrieval system, the framework from this lesson gives you a structured diagnostic. Start by asking: how were documents chunked? Is there evidence that chunk boundaries respect semantic units (paragraphs, sections) or were chunks created by a fixed character count? Then ask: which embedding model was chosen, and was it evaluated on text from this domain? Finally, ask: is there a re-ranker, and if so, how many candidates does it process? The answers will tell you where the weakest link in the chain is — and that is where improvement will have the highest leverage.
2. Scoping a New Retrieval System
When designing a new system, resist the temptation to start with model selection. Start with your documents: what are they about, how long are they, what is their structure? Then ask what kinds of queries users will issue: mostly exact-match lookups, mostly conceptual questions, or a mix? The answers determine whether you need a hybrid system (almost certainly yes), what chunk granularity makes sense, and whether re-ranking is worth the latency cost. Architecture follows requirements; model selection follows architecture.
3. Explaining Retrieval Failures
When a semantic search system returns bad results, the framework from this lesson gives you a vocabulary for diagnosis. A failure where the right document exists but is not returned suggests either a model-domain mismatch (the embedding did not place query and document near each other) or an index recall problem (the document was dropped before re-ranking). A failure where wrong documents are returned at high rank suggests the embedding model is conflating concepts that should be distinct — a sign of a domain mismatch or a chunking problem that mixed unrelated content into a single chunk.
The Road Ahead: What Each Child Lesson Adds
The lessons that follow are not independent topics — each one deepens a specific layer of the pipeline you have now seen end-to-end. Here is what to expect and why the sequencing matters:
FOUNDATION (This Lesson)
│
├── Semantic Search Principles (deepens: how embeddings encode meaning,
│ distance metrics, similarity functions, and when each applies)
│
├── Vector Database Architecture (deepens: how ANN indexes work
│ internally, the tradeoffs of HNSW vs IVF vs other structures,
│ and how to configure for your recall/latency requirements)
│
├── Hybrid Retrieval Systems (deepens: how keyword and semantic
│ retrieval are combined, fusion strategies, and when to route
│ queries to one retrieval mode vs the other)
│
└── Query Understanding (deepens: how queries themselves can be
transformed — expanded, rewritten, decomposed — before
retrieval to improve the match between intent and result)
Notice that each child lesson addresses a specific point of failure you have now seen in context. Semantic search principles address the model layer. Vector database architecture addresses the index layer. Hybrid retrieval addresses the gap between keyword and semantic coverage. Query understanding addresses the fact that user queries are often ambiguous, poorly formed, or under-specified — and that transformation before retrieval can close that gap without changing the index at all.
💡 Pro Tip: As you work through each child lesson, anchor what you learn back to the end-to-end pipeline diagram from this lesson. Ask: "Which stage does this mechanism affect? What does it fix, and what failure mode does it leave untouched?" That habit will prevent the common error of treating each component as its own subject rather than as one part of a system you are responsible for as a whole.
A Final Word on the Shape of This Knowledge
Search is one of those domains where the conceptual distance between "I understand the basics" and "I can build something that works reliably" is larger than it appears. The basics are genuinely simple: encode text as vectors, find close vectors, return documents. The difficulty is in the interactions — the ways that chunking affects embeddings, embeddings affect index behavior, index recall constrains re-ranking, and all of it must be evaluated together against realistic queries.
The lessons ahead are designed to close that gap precisely. They will give you the mechanical understanding of each component — not just what it does, but how it does it and why the design choices were made the way they were. That depth is what allows you to configure, tune, and debug rather than just assemble.
⚠️ Final principle to carry into every lesson that follows: A retrieval pipeline is only as good as the evaluation that measures it. You cannot improve what you do not measure, and you cannot measure what you have not defined. Before optimizing any component of any pipeline, define what "better" means for your specific users and their specific queries. Everything else follows from that definition.
You now have the foundation. The next lessons will build on it precisely.
